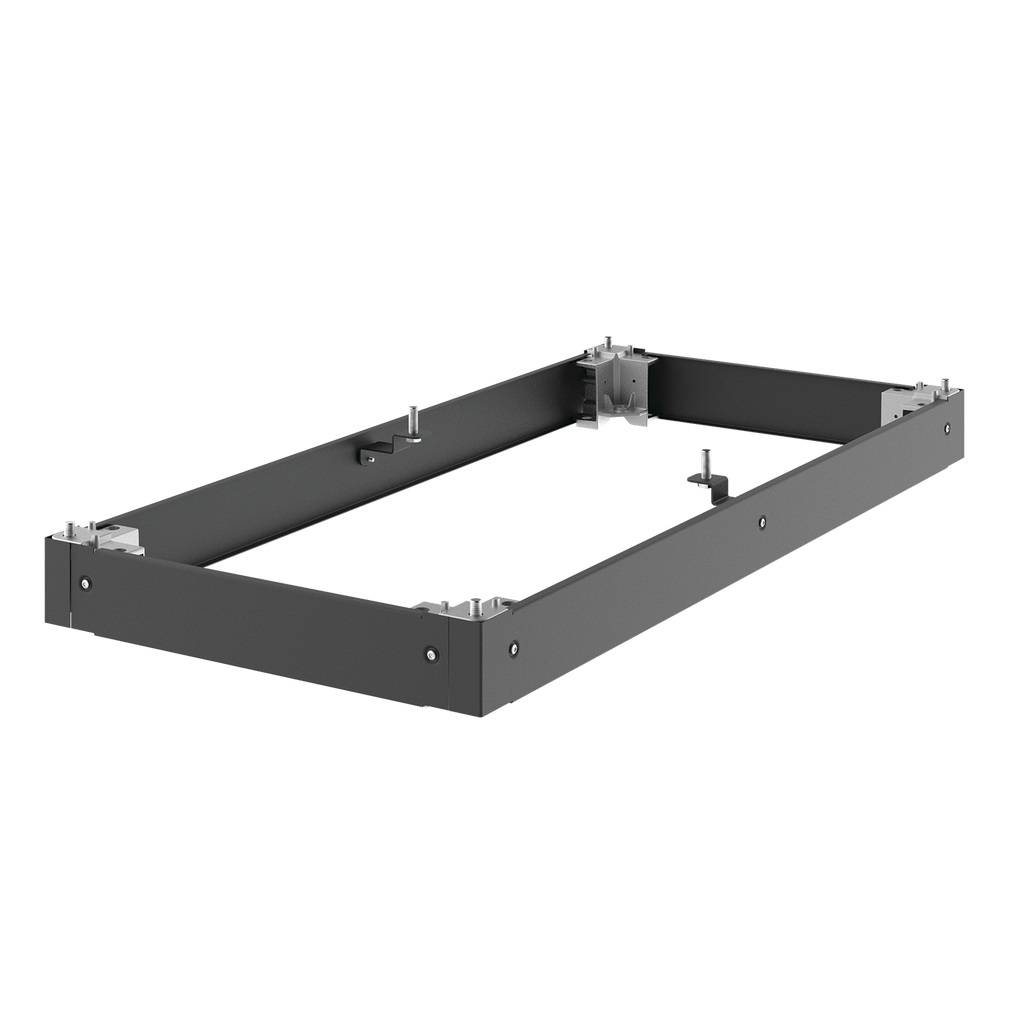

Product image for Hoffman P2BP1D126 ProLine G2 Disconnect Plinth Base, 100mm, fits 1200x600mm, Black, Steel
Email

Hoffman P2BP1D126 ProLine G2 Disconnect Plinth Base, 100mm, fits 1200x600mm, Black, Steel

Manufacturer: nVent Hoffman | Catalog # P2BP1D126 | North Coast Part # 2415049
$492.95/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine G2 Disconnect Components are used with ProLine G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard ProLine G2 components (i.e. ProLine G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 9005
Material
Steel
Type
Bases and Base Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510350581
Color
Black
Finish
Powder Coated
GTiN
00783510350581
Product UPC
78351035058
Weight
14.33 lb

Dimensions

Height
6-3/4 Inch
Length
48.87 Inch
Thickness
1.52 mm
Width
7.75 in
Features
  • Solution for disconnect enclosures widths >1000 mm wide
  • Four access panels for cable management options at the base of the enclosure
  • Sturdy cast aluminum corner supports for superior performance under load
  • Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
  • Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
  • 100 mm or 200 mm options
  • To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
  • Installation hardware included
