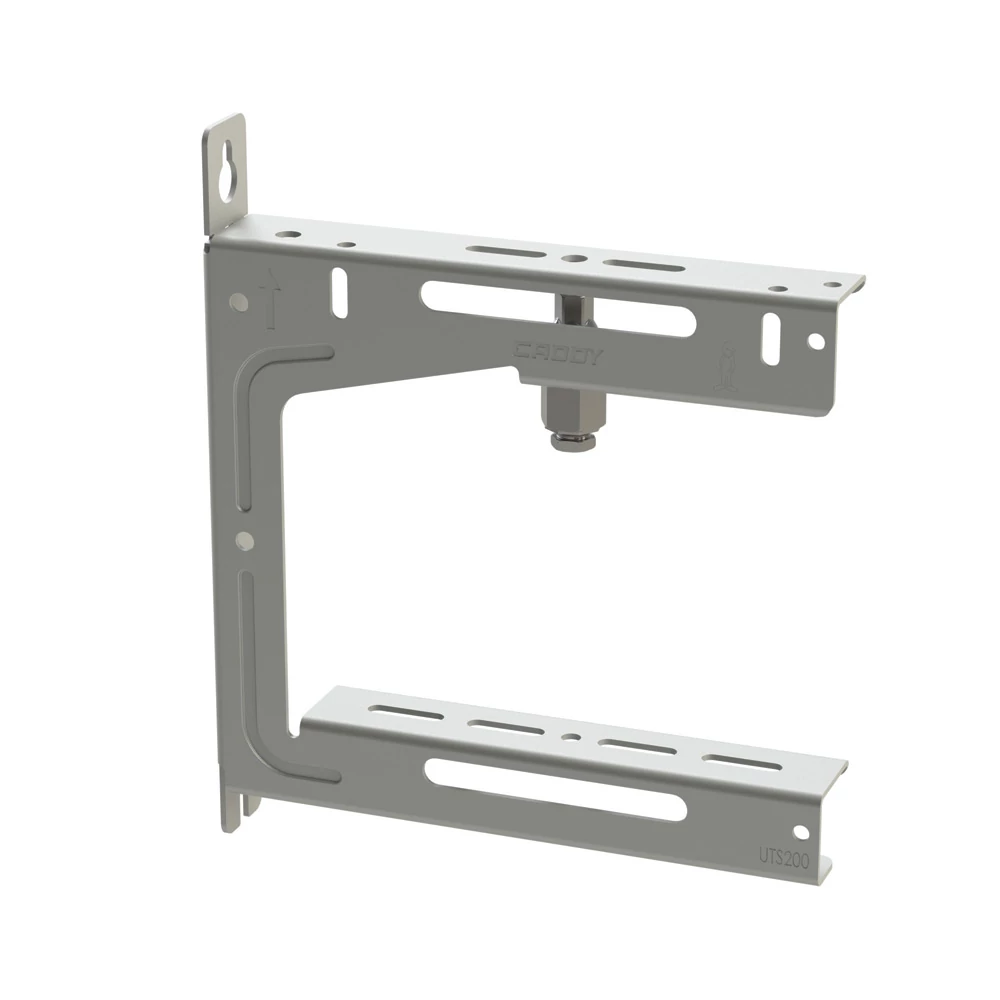

Caddy UTS30038RL Caddy Rod Lock Universal Tray Support, 3/8" Rod, 12.7"

Manufacturer: Cadweld | Catalog # UTS30038RL | North Coast Part # 2415068
$5,202.83/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Universal Tray Supports are the perfect solution for supporting cable trays while maintaining accessibility to cables after the installation is completed. Universal Tray Supports are different from labor-intensive traditional methods fabricated with ceiling brackets, strut channels, cantilever arms, and various hardware. Universal Tray Supports can be attached to ceiling, wall, threaded rod, or cable hanging systems to support all possible project requirements and additional cable capacity.

Technical Information

Applications
datacom; electrical
Material
Steel
Type
CADDY ROD LOCK Threaded Rod Mounting System

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856922520
Finish
Electro Galvanized
GTiN
00782856922520
Product UPC
78285692252
Features

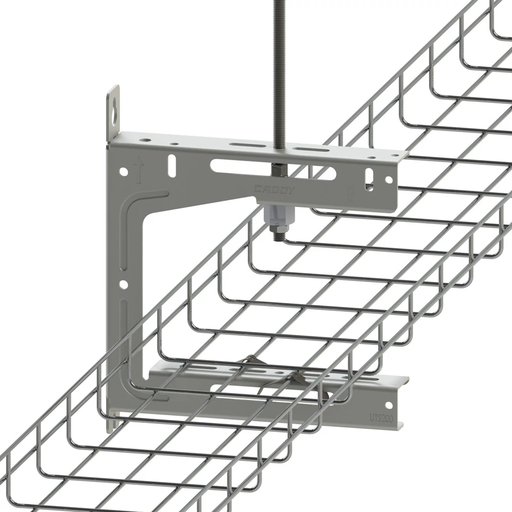

  • Universal design to accommodate various cable tray hanging methods including ceiling, wall, threaded rod, or cable hanging systems
  • C-shape maintains accessibility to cables after installation is completed
  • Easy \"push-to-install\" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position

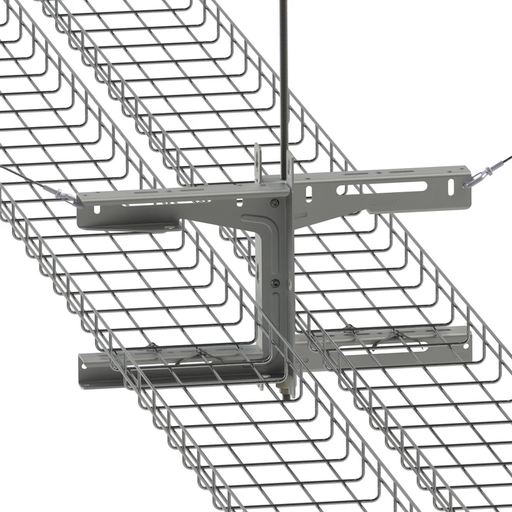

  • Strut profile on both arms allow for two runs of cable trays per bracket

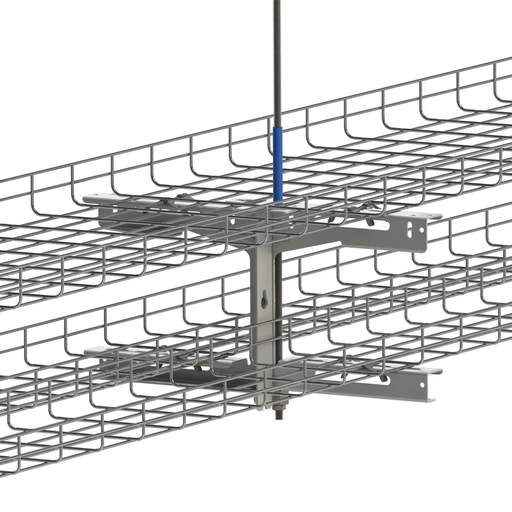

  • Top tab can be bent allowing for extra wide cable trays to be installed when two brackets are fastened back-to-back
  • Key holes provided for wall mount applications
  • Works with the KBT Wire Basket Tray Clip for securing wire basket cable tray or J-bolts for securing cable ladder
