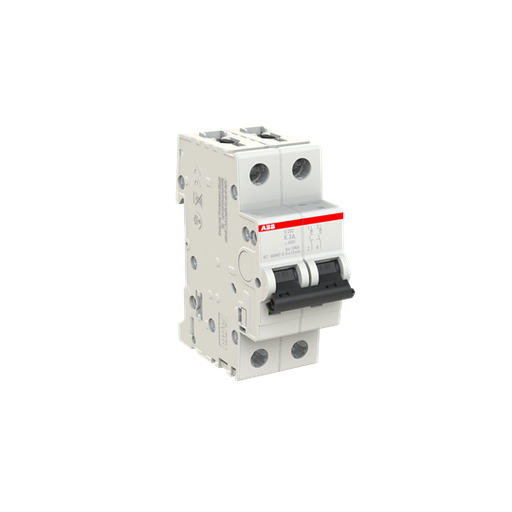

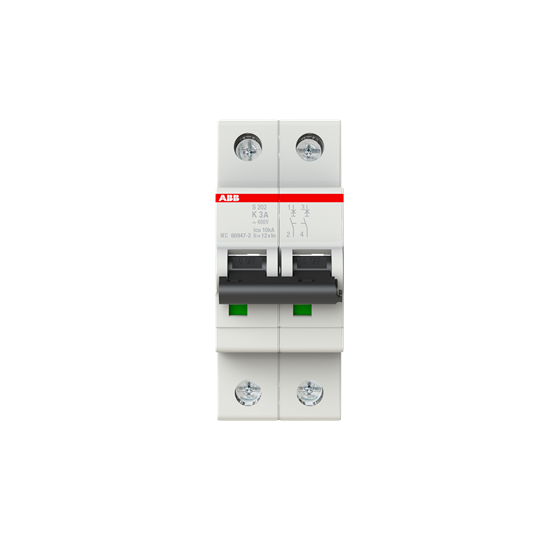

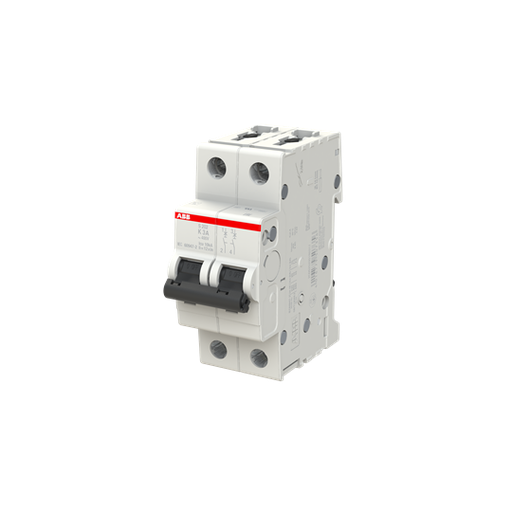

Product image for Thomas & Betts S202-K3 2-Pole 3 Amp 480 Y/277 VAC Miniature Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Thomas & Betts S202-K3 2-Pole 3 Amp 480 Y/277 VAC Miniature Circuit Breaker

Manufacturer: ABB Inc. | Catalog # S202-K3 | North Coast Part # 2415685
$75.55/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Miniature Circuit Breaker, Supplementary Protector, Rated Current 3 Amps, 2 Pole, Interrupt Rating 6 kA, Thermal Magnetic Trip Curve K, Voltage up to 277/Y480 VAC, 60/110 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Technical Information

Amperage
3 Amp
Applications
Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Current
3 Amp
Frequency
50/60 Hz
Interrupt Rating
6 kAIC
Number of Poles
2 Pole
Operating Temperature
55 degrees C
Standard
EN 60947-2UL 1077,IEC
Terminal Type
Screw Terminals
Trip Type
K
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
662019170961
GTiN
00662019170961
Product UPC
66201917096

Dimensions

Height
88 mm
Length
69 mm
Width
35 mm
