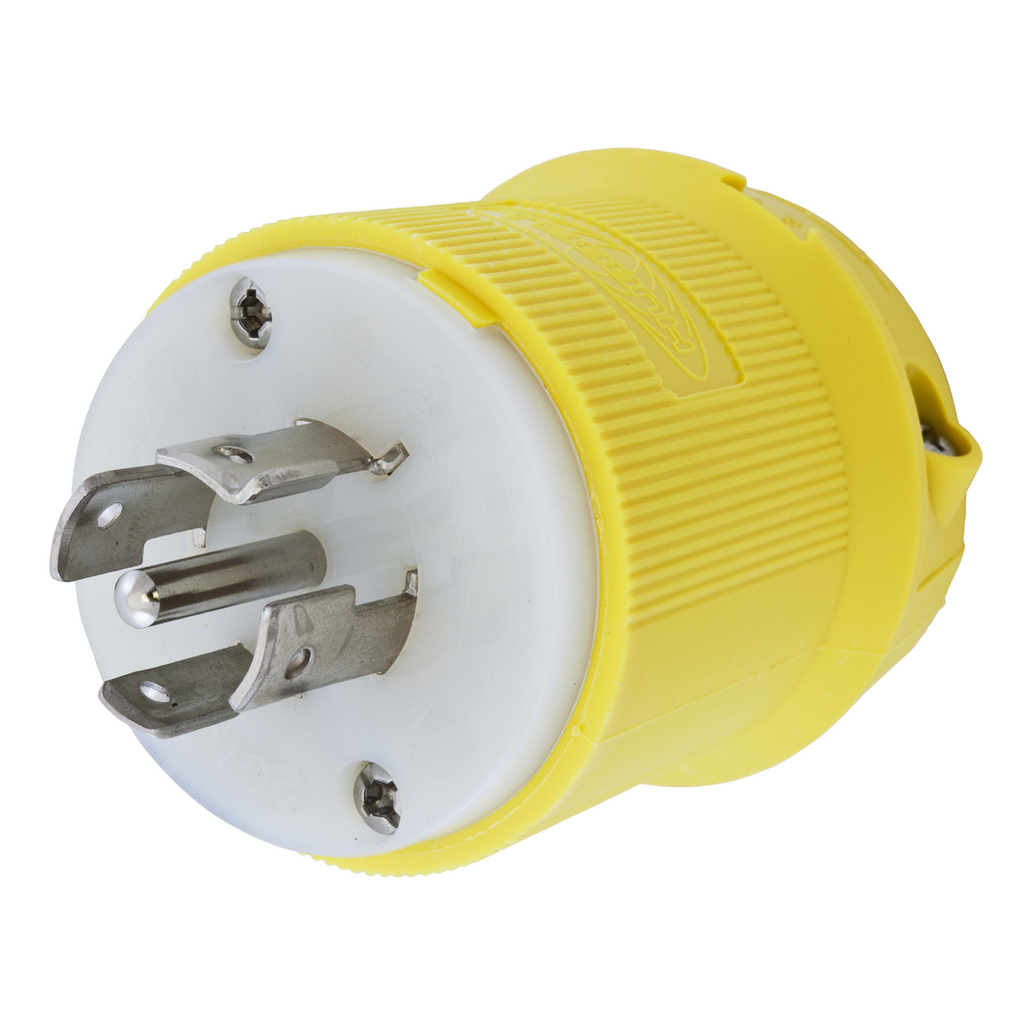

Hubbell HBL25CM11 Locking Plug, CM, 20A 3PH120/208V, L21-20P, YL

Manufacturer: Hubbell / Kellems | Catalog # HBL25CM11 | North Coast Part # 241810
$117.04/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Plug, 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20P, Yellow Nylon

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial/Marine
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L21-20P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Bronze
Size
2.75 in x 2.33 in x 2.33 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585038711
Color
Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585038711
Housing Material
Yellow Nylon
Product UPC
78358503871
Weight
0.3 lb

Dimensions

Height
2.33 Inch
Length
2-3/4 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion Resistant
