LITH CNY LED ALO SWW2 UVOLT PE PIR

Manufacturer: Lithonia Lighting | Catalog # CNY LED ALO SWW2 UVOLT PE PIR DDB M2 | North Coast Part # 2423874
$254.12/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

Technical Information

Applications
Offices & Banks,Retail
Color Temperature
3000 ,4000 ,5000 ,Variable K
Correlated Color Temp
3000 ,4000 ,5000 ,Variable K
Lamp Type
LED
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
10,000 Lumen,5000 Lumen,5500 Lumen,6500 Lumen,7500 Lumen,8500 Lumen Lumen
Material
Aluminum
Power Source
Hardwired
Style
Traditional
Voltage
120-347 Volt
Wattage
75 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589495041
Color
Bronze
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00197589495041
Product UPC
19758949504
Shape
Square
Weight
4.85 L

Dimensions

Height
3 Inch
Length
10 Inch
Width
10 IN
Features
  • TECHNOLOGY: Adjustable Lumen Output (ALO), Switchable Color Temperature (SWW2), Selectable Photocell (PE) and Selectable Motion Sensor (PIR) features allow for this canopy luminaire to offer 54 customizable options in one fixture
  • HOURS OF LIFE: High-efficiency LEDs maintains over 70% of light output at 100,000 hours (L70>100,000 hours)
  • CONTROLS: Includes a selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set to maintain 10% or fully off when no motion is detected
  • RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations. IP65. Tested in accordance with IESNA LM-79 and LM-80 standards. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product
  • VOLTAGE: UVOLT 120 - 347V
  • INSTALLATION: Quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring
  • CONSTRUCTION: Cast-aluminum housing with powder coat finish for lasting durability and IK08 impact rated frosted lens is designed for uniform light distribution while providing visually comfortable illumination

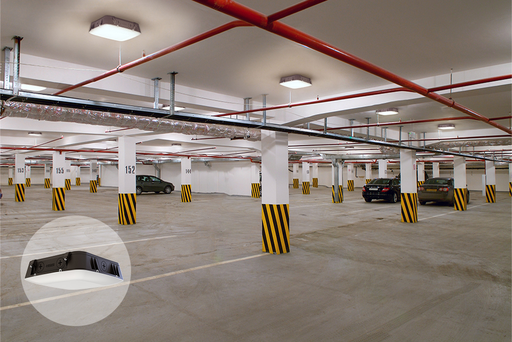

  • APPLICATIONS: Ideal for parking garages, building entrances and walkways
  • WARRANTY: 5-Year Limited Warranty
  • DIMENSIONS: (w x h x d) 10 in. x 3 in. x 10 in.
