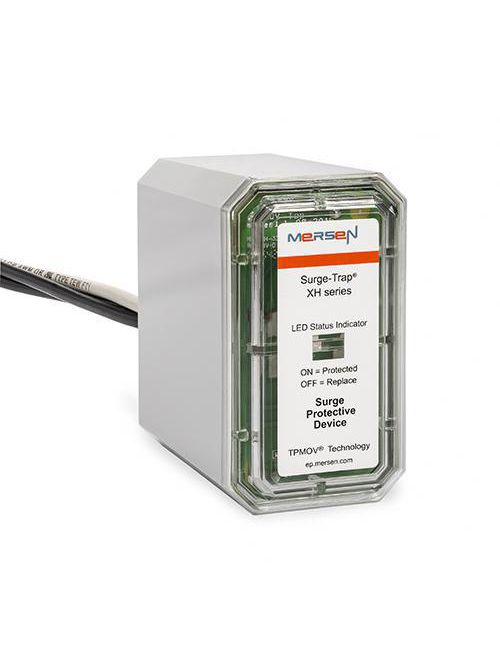

Mersen STXH120P05 SPD - Type 1 ST-X

Manufacturer: Mersen | Catalog # STXH120P05 | North Coast Part # 2425389
$462.01/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The most compact of the STX series offering, the Surge-Trap® Type 1 STXH meets requirements for UL1449 4th Edition and is suitable for any 120/240VAC split phase application. The STXH Series SPD features TPMOV® technology inside making it the safest product available in its category. Its compact size, performance, and reliability are especially ideal for HVAC applications and direct mounting to air condition disconnect switches.

Technical Information

Current Type
AC
Frequency
50 Hz
Indicator
LED
Max Discharge Current
50 kA
Max Operating Temperature
85 degrees C
Min Operating Temperature
-40 degrees C
Mounting Type
Panel Mount
Nominal Discharge Current
20 kA
Number of Wires
2 Wire
Short Circuit Current Ratng
200000 A

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001472511
GTiN
00782001472511
Housing Material
Polycarbonate
Product UPC
78200147251
Weight
0.8 lb

Dimensions

Height
3.22 Inch
Length
3.2 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Designed with the industry leading Mersen TPMOV® Technology
  • Compact footprint designed to mate with AC Disconnect Switches
  • LED status indicator (ON = Good, OFF = Replace)
  • NEMA 4X enclosure for outdoor or indoor use
  • Fits 1/2\" knockouts with 18\" leads for easy installation
  • For use in ANSI/UL Type 1 or 2 SPD installations
  • 3 Modes of Protection (L-N, L-L)
  • 3-year warranty
Certifications
  • ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
  • CSA C22.2, Type 1 SPD
  • ANSI/IEEE C62.41.1, C62.41.2, C62.45
  • UL96A Lightning Protection
  • RoHS Compliant
