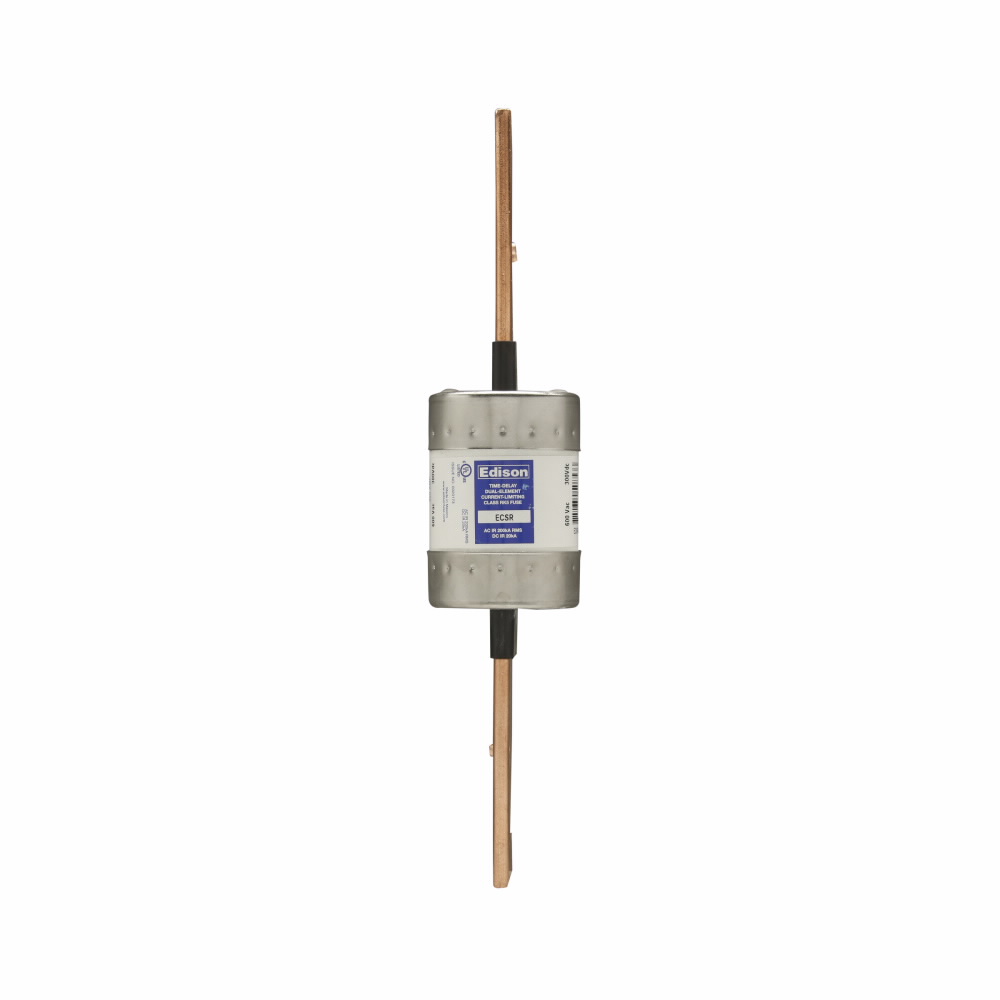

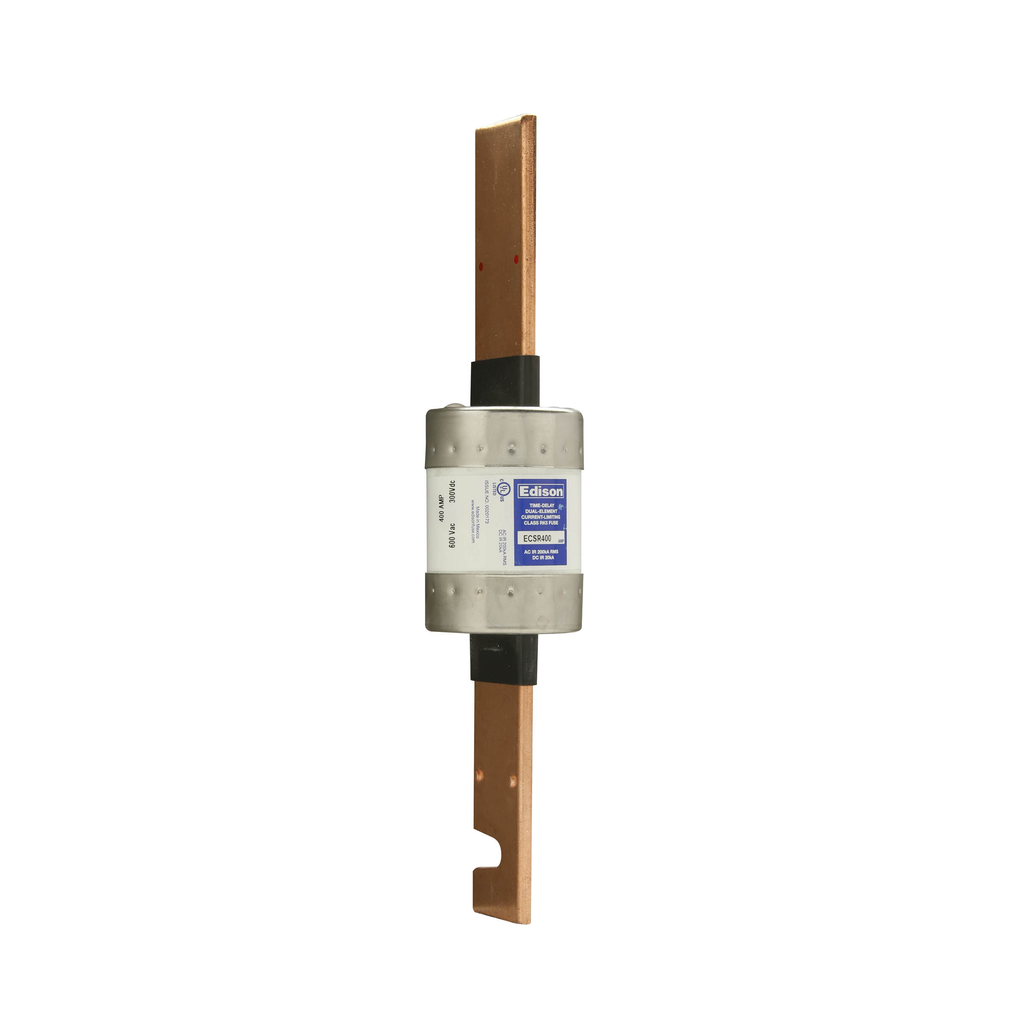

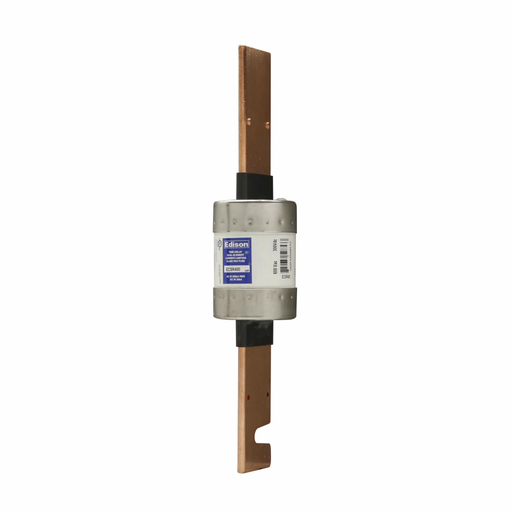

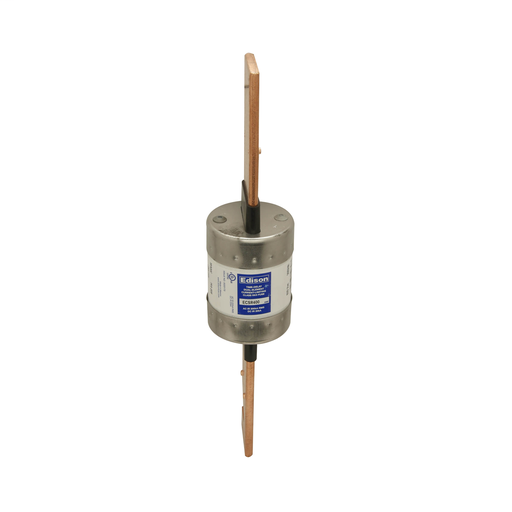

BUSS ECSR300 UL CLASS RK-5 TIME DEL

Manufacturer: Cooper / Bussman | Catalog # ECSR300 | North Coast Part # 2428606
$229.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 300 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 600 V

Technical Information

Amperage
300 Amp
Applications
AC Power Distribution System Mains, Feeders and Branch Circuits, Protection of Motor and Motor Branch Circuits, Transformers and Other Inductive Loa
Connection Type
Blade
Enclosure Material
Stainless Steel
End Type
Blade
Interrupt Rating
200 kAIC
Response Time
10 S at 500%
Size
2.34 In Diameter X 11.63 In Length
TC Connection
Blade End X Blade End
Type
Current Limiting,Time-Delay
Voltage
600 Volt

Manufacturer Information

Brand
Edison
Sub Brand
Edison

General Product Info

12-Digit UPC
782634508519
Class
Class RK5
GTiN
00782634508519
Product UPC
78263450851
Weight
.5 lb

Dimensions

Diameter
2.34 Inch
Height
1.06 Inch
Length
5-1/2 Inch
Width
2.34 in
