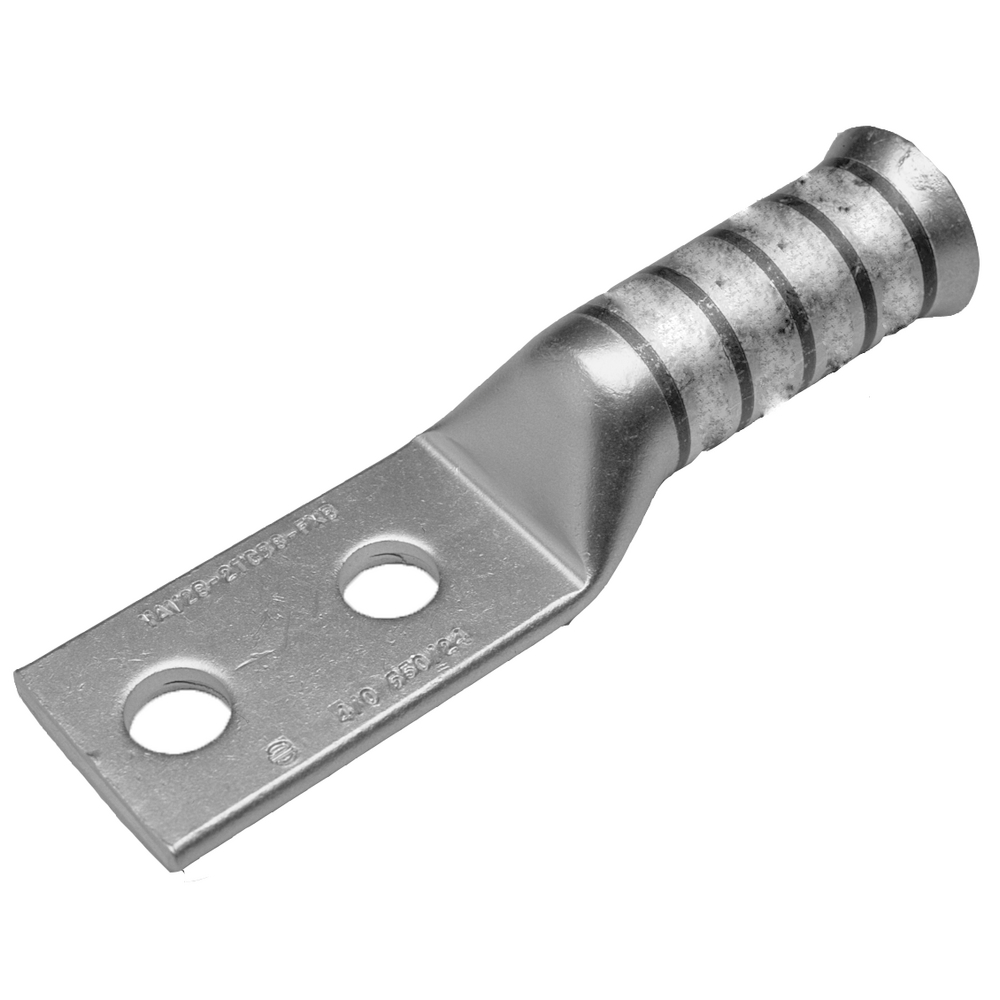

Product image for Burndy YA462NFXB Belled Cu Lug-1000 Flex-
Image thumbnail 0
Image thumbnail 1
Email

Burndy YA462NFXB Belled Cu Lug-1000 Flex-

Manufacturer: Burndy | Catalog # YA462NFXB | North Coast Part # 242933
$217.36/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Copper Compression Lug, 2 Hole w/o Inspection Window, 1111 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Belled End, Tin Plated.

Technical Information

Applications
For Flex Conductor
Cable Size
1111 KCMIL (1000 KCMIL Nominal), 2750/24
Conductor Material
Copper
Conductor Size
1000 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tinned
Stud Size
0.5 in
Type
Long Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810038949
Finish
Tin Plated
GTiN
00781810038949
Product UPC
78181003894

Dimensions

Height
1.84 Inch
Hole Size
14 mm
Length
7.91 Inch
Overall Length
7.91 in
Width
2.69 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 3-11/16 IN, Finish: Electro-Tin Plated, Die Index: 29, Color Code: Yellow, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, Y46, PAT750 Tool, P45RT Die, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Conductor Type: Flexible Copper
