PAN KJS6X88TCBU Keystone Cat 6A Shi

Manufacturer: Panduit | Catalog # KJS6X88TCBU | North Coast Part # 2443005
$23.99/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet

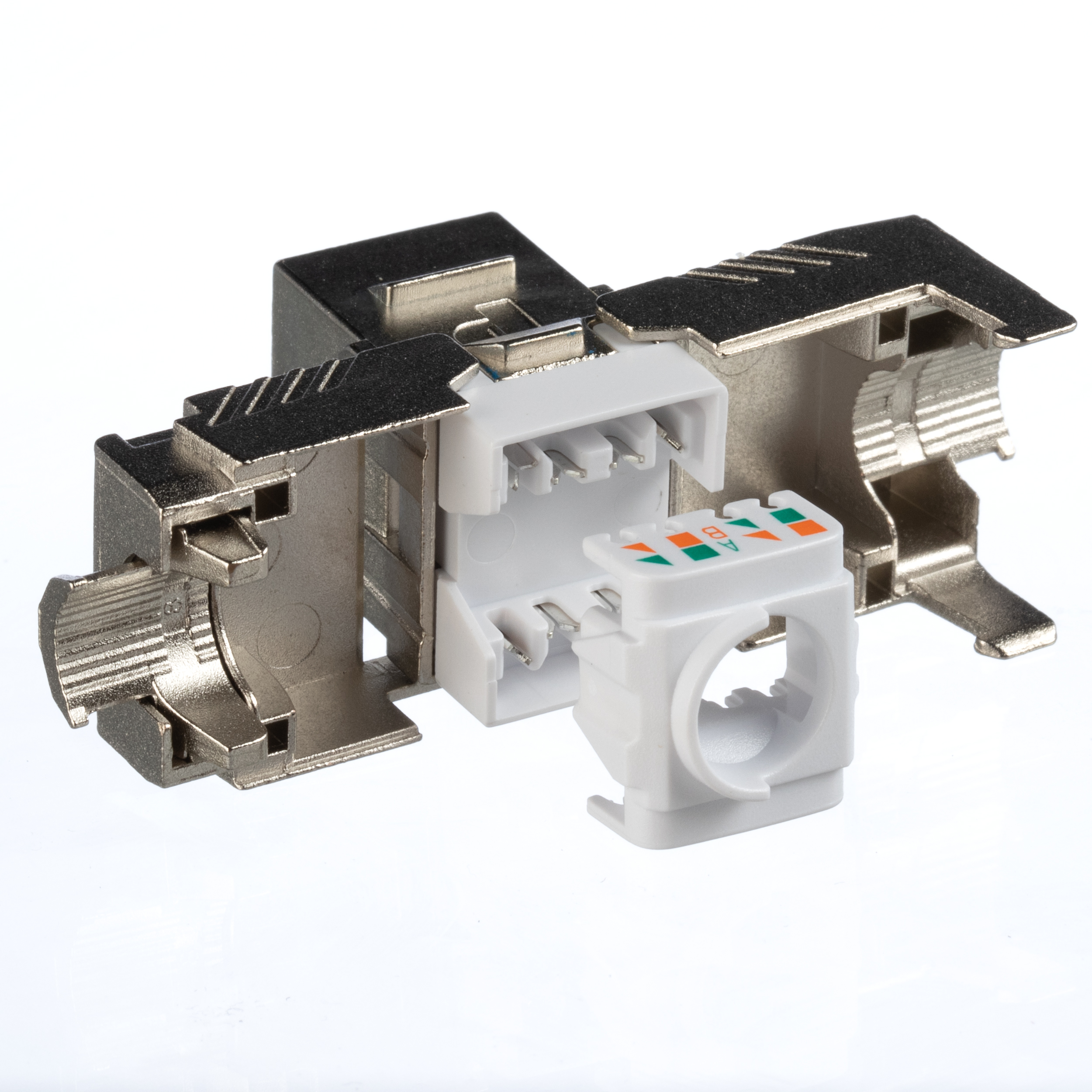

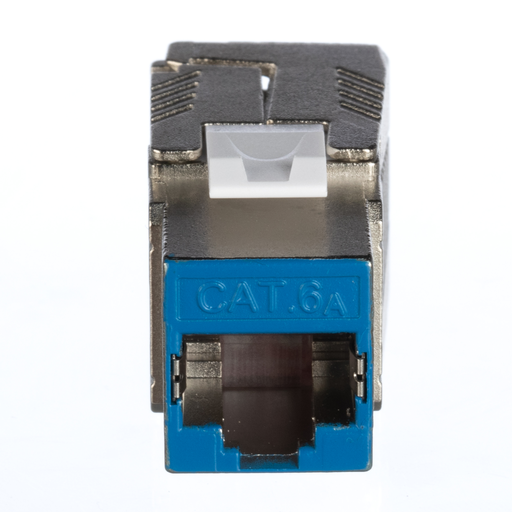

The keystone Cat 6A shielded RJ45 jack module is designed to terminate 4-pair, 22-24 AWG shielded twisted pair cable. Shielded jack modules use a forward motion termination method to optimize performance. The die-cast housing provides a robust design to protect against physical and electromagnetic damage. The jack module is silver with a blue front.

Technical Information

Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Type
Jack Module

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Keystone

General Product Info

12-Digit UPC
613056800779
Color
Blue
GTiN
00613056800779
Product UPC
61305680077

Dimensions

Depth
41.6 mm
Height
0.81 Inch
Overall Length
41.6 mm
Width
0.81 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
China
Standards and Certifications
  • Standards Met: Meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Meets ANSI/TIA-568.2-D and ISO 11801 Category 6A Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-002, Rated for 750 Cycles with IEEE 802.3af, 802.3at, and 802.3bt type 1, 2, 3, and 4 for Power Up to 100W, and RoHS Compliant
Prop 65
  • N
