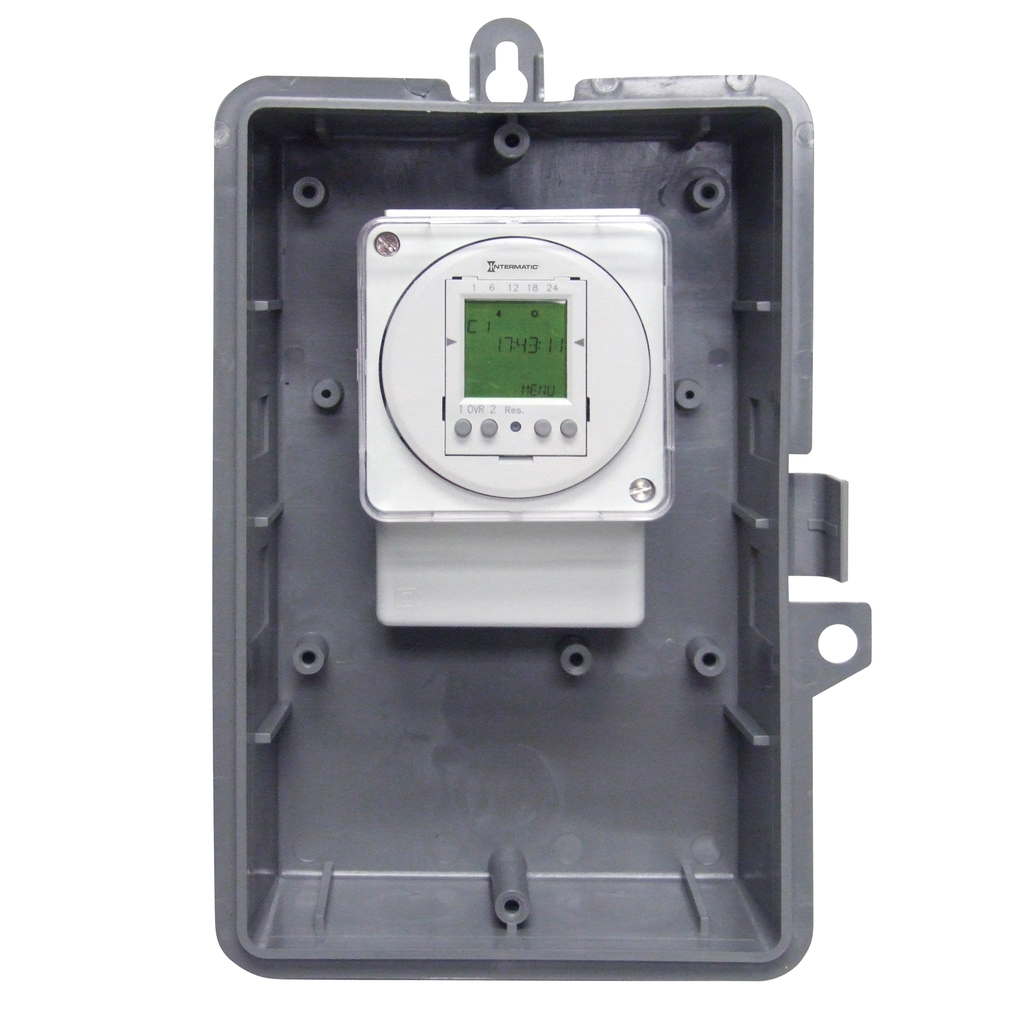

Product image for Intermatic GMXST-I-120 24HR 120V 60HZ NEMA1 INDR PLASTIC 21A
Image thumbnail 0

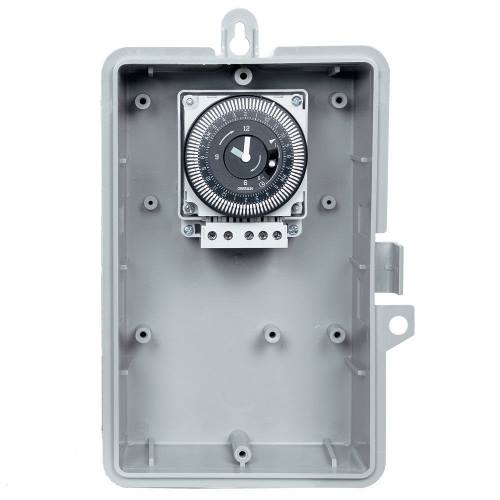

Image thumbnail 1

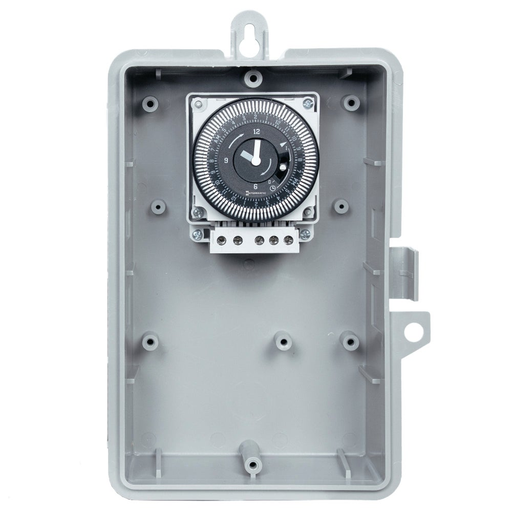

Image thumbnail 2
Email

Intermatic GMXST-I-120 24HR 120V 60HZ NEMA1 INDR PLASTIC 21A

Manufacturer: Intermatic | Catalog # GMXST-I-120 | North Coast Part # 2448558
$188.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The GMX series time controls are universal mechanical time switches. They are a low cost alternative for applications that do not require more than 21 A or 2 HP @ 240 VAC. The unit is mounted in a UL Type 1 indoor or Type 3R outdoor plastic enclosure. The GMX is a light-duty commercial time switch ideal for 24, 120 or 208/240 VAC single-phase general applications.

Technical Information

Action
SPDT
Amperage
21 Amp
Applications
For Commercial, Indoor, Lighting, HVACR, Pumps, Motors, Fans, Agricultural, General Electrical Circuit
Connection Type
Screw Terminal
Contact Configuration
SPDT - 1 NO, 1 NC
Contact Rating
21 A at 250 VAC (Resistive)
Enclosure
NEMA 1
Enclosure Type
NEMA 1
Frequency
60 Hz
Input Voltage
120 V
Material
Plastic
Max Operating Temperature
185 degrees F
Max Wire Size
12 AWG
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
185 degrees F
Power Consumption
1350 W
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM
Standard
CCSAus Certified,CULus Listed #E10694,HVACR
Switch Type
SPDT
TC Connection
Screw Terminal
Temperature Rating
-40 to 185 degrees F
Type
Electromechanical Time Control
Voltage
120 Volt
Wattage
1350 Watt

Manufacturer Information

Brand
Grasslin
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275153226
Environmental Conditions
Indoor
GTiN
00078275153226
Product UPC
07827515322

Dimensions

Depth
4 Inch
Height
10 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 21 A SPDT Switch
  • UL Type 1 indoor or Type 3R outdoor plastic enclosure
  • Manual 3-way override
  • Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
  • True clock face, easy to set
  • Finger-safe terminals
  • Enclosure provides space for field-added contactor or other accessories
  • NA
