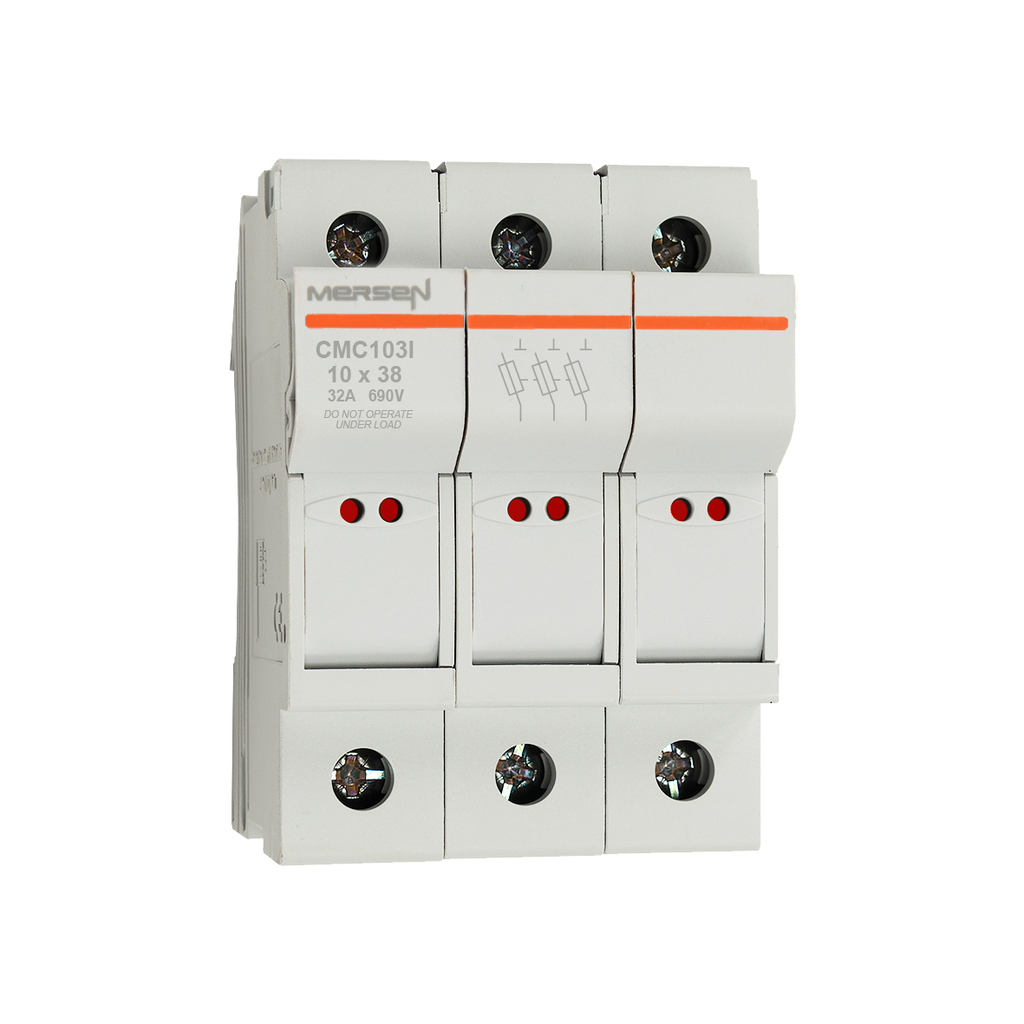

Product image for Mersen E1062696 Fuse Holder 10x38 I
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Mersen E1062696 Fuse Holder 10x38 I

Manufacturer: Mersen | Catalog # E1062696 | North Coast Part # 2449188
$174.30/ea
ea
Order in multiples of 4 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Modulostar® range is made of tough and durable thermoplastic or thermoset material.

Technical Information

Amperage
32 Amp
Max Operating Temperature
70 degrees C
Min Operating Temperature
-40 degrees C
Number of Poles
3 Pole
Torque
17.7 lb-in

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
605340602640
GTiN
03605340602647

Certifications and Compliance

Country of Origin
France,Tunisia
Certifications
  • IEC 60269-2 and IEC 60947-3 Compliance
  • RoHS, Reach compliant
  • Marine certificates
Features
  • Modular design
  • Compact design for space saving
  • DIN rail mounting
  • Finger safe
  • Easy access to the fuse

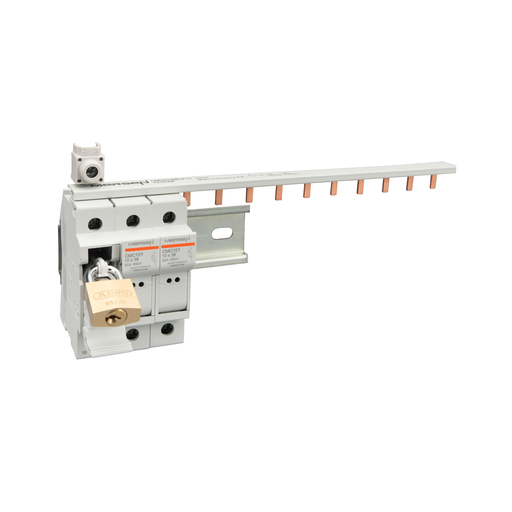

  • Lockable without accessory
  • Sealable in closed & open position
  • Optional visual blown fuse indicator
  • Multi-pole assembly kit available
  • Plastic material UL94V2 mini
  • Plastic material R22HL2 for railway application
  • Flame retardant materials with glow wire flammability index to 960°C
  • Schock and vibration tested for marine and railway applications
