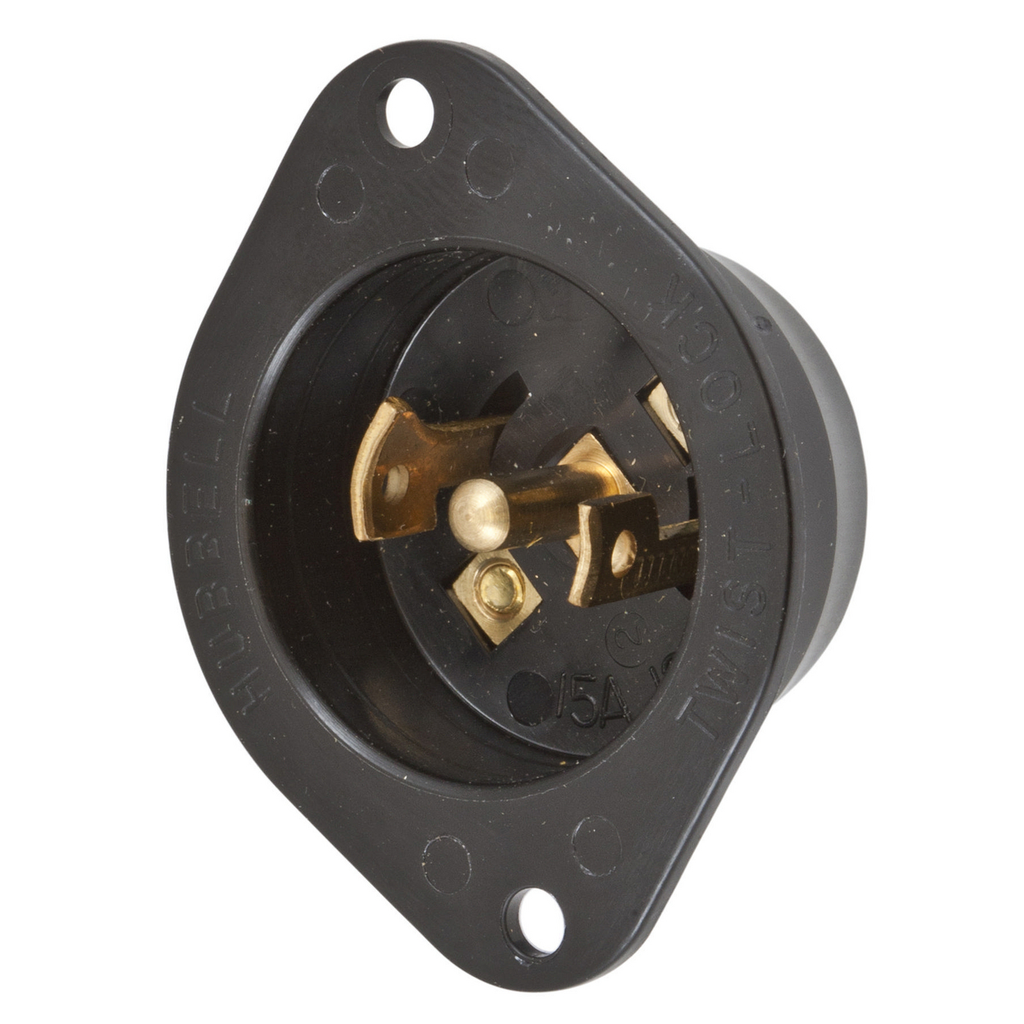

Product image for Hubbell HBL7486N Locking F-INLT, MIDGET, 15A 125/250V, ML-3P, NM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL7486N Locking F-INLT, MIDGET, 15A 125/250V, ML-3P, NM

Manufacturer: Hubbell / Kellems | Catalog # HBL7486N | North Coast Part # 245810
$41.36/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black Nylon Flange.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
Nylon
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA

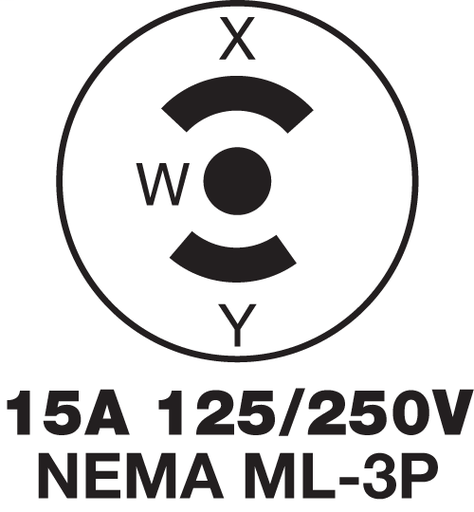

ML-3P
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Midget Locking
Standard
CSA C22.2 No.42,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Standard Single
Voltage
125/250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Inlets

General Product Info

12-Digit UPC
783585237459
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585237459
Product UPC
78358523745
Weight
0.05 lb

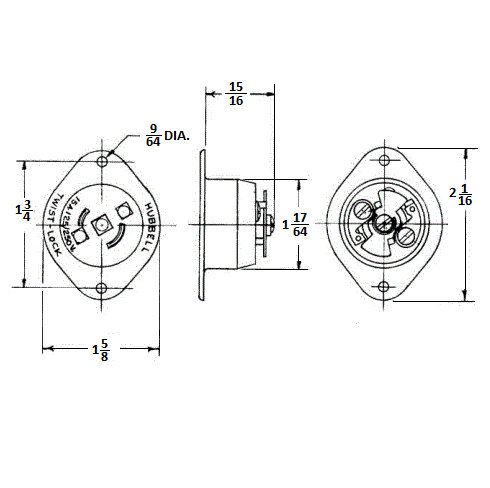

Dimensions

Height
0.94 Inch
Length
2.06 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • Fully Insulated nylon casing with integral flange
  • Black color blends in with equipment
  • Standard Product
