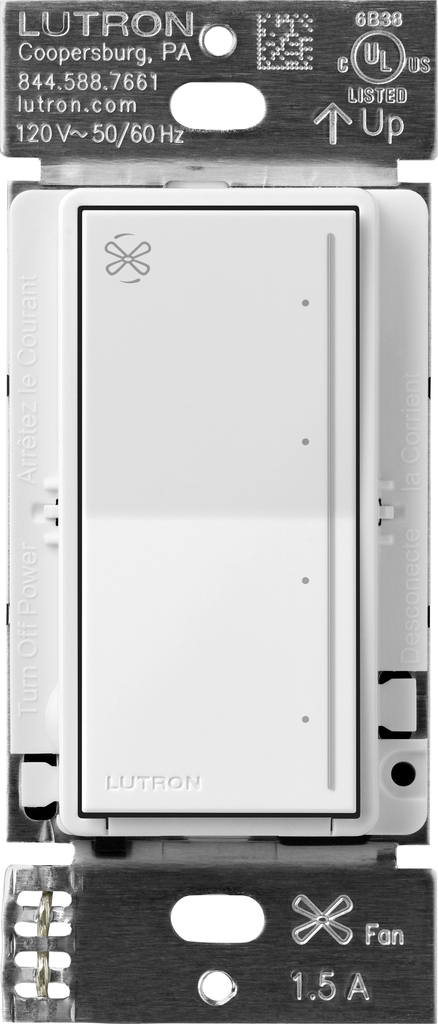

LUT RRST-ANF-WH RA3 SUNNATA FAN CON

Manufacturer: Lutron | Catalog # RRST-ANF-WH | North Coast Part # 2471311

$367.77/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Create a cohesive look across your RadioRA 3 project by adding the Sunnata touch fan speed control to complement RA3 Sunnata LED+ dimmers and keypads. The RA3 Sunnata touch fan speed control provides 4 quiet  speeds for one AC ceiling fan up to 1.5A. The intuitive paddle rocker switch turns ceiling fans On/Off with a sleek capacitive touch light bar to raise/lower the fan.s speed. The soft glow lightbar also doubles as a locator light in dark rooms. Program the Sunnata touch fan speed control to RA3 Sunnata keypads in the Lutron Designer software for multi-location/scene control and to customize the lightbar. This innovative decorator-style fan control is single pole and requires a neutral connection. Install in a 2-gang wall box with a Sunnata LED+ touch dimmer to control a fan light kit. Ceiling fans with integrated fan speed light modules, proprietary remotes, or DC motors are not compatible with this control. Available in 20+ colors. Coordinates perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Amperage
1.5 Amp
Connection Type
Neutral
Mounting Type
2.5 in
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Voltage
120 Volt

Manufacturer Information

Brand
RadioRA 3

General Product Info

12-Digit UPC
784276312202
Color
White
Finish
Gloss
GTiN
00784276312202
Product UPC
78427631220

Dimensions

Height
4.687 Inch
Length
2.937 Inch
Width
1 14/16 in
Standards and Certifications
  • CULUS
  • NOM
  • FCC
  • IC
  • cULus
  • IFT
Features
  • Includes (1) RA3 Sunnata touch fan speed control, Gloss finish
  • Works with up to 1.5A single ceiling fan with AC motor; Not compatible with fans with proprietary remotes or DC motors
  • Single Pole, neutral required; 120V

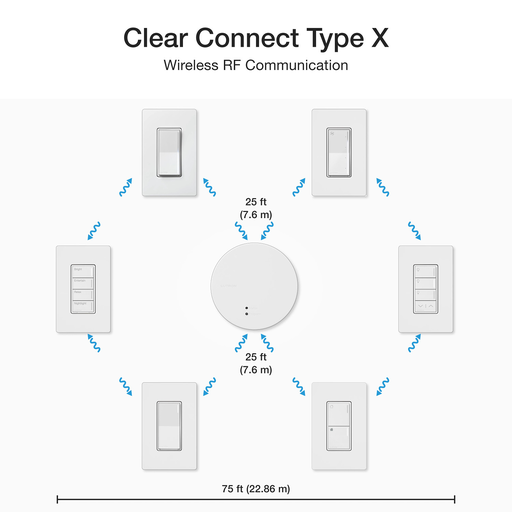

  • Clear Connect Type X, 2.4 GHz
  • Touch or swipe anywhere on the light bar to turn the fan on at any of the 4 speeds
  • Soft-glow lightbar helps find the fan control in the dark
  • Program to Sunnata keypads for multi-location/scene control, adjust/disable the brightness of the lightbar, and set as favorite fan speed within the Lutron Designer software
  • Intuitive paddle rocker fits standard designer wall plate openings
  • Compliments the design of Sunnata Touch LED+ dimmers for a cohesive look
  • Available in 20+ colors; Coordinates perfectly with Lutron Claro wall plates

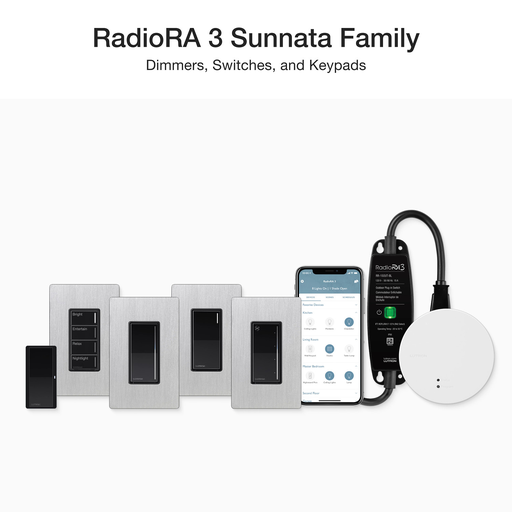

  • Works with RadioRA 3 Systems; Use to control one paddle-type ceiling fan
  • Not for use with DC motor fans, fans with remote controls or Wi-Fi only fans
  • Not for use with bathroom or kitchen exhaust-type fans or to control lighting loads on a fan; Power failure memory: Should power be interrupted, the control will return to its previous state when power is restored.
