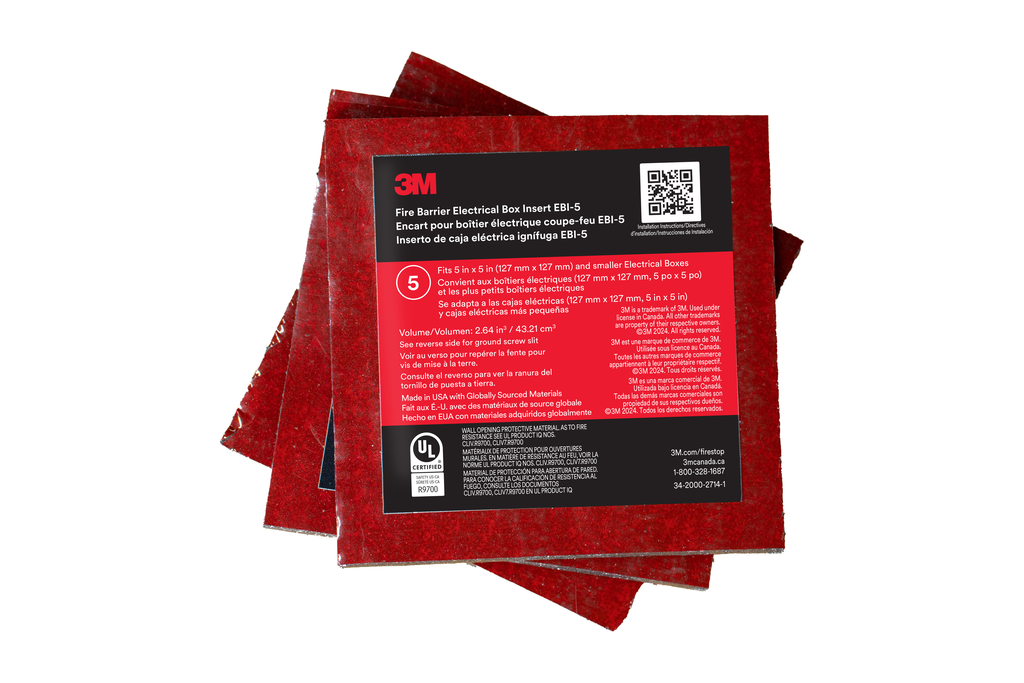

3M EBI-5 (7100265896) Fire Barrier Electrical Box Insert, 3.75" x 3.75" x 3/16"

Manufacturer: 3M | Catalog # 7100265896 | North Coast Part # 2488234
$13.64/ea
ea
Log in or register to view your price, purchase history, and more!
20 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
20 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet

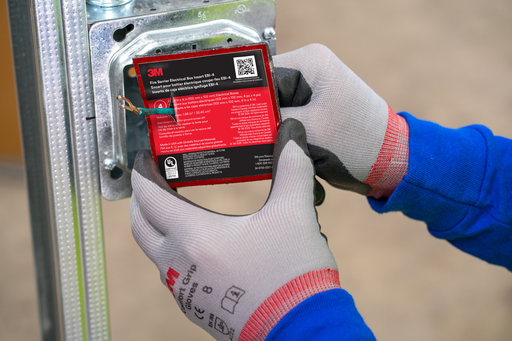

3M™ Fire Barrier Electrical Box Inserts are a flexible, one-piece fire-rated intumescent insert used to protect electrical boxes by adhering to the inside the box. When exposed to fire, the insert expands to fill up the box preventing the spread of fire and limiting temperature rise.

Technical Information

Applications
Commercial Construction

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
068060000842
Color
Red
Product Type
Electrical Box Insert
Product UPC
06806000084

Dimensions

Overall Length
3.75 in
Thickness
0.0 in
Width
3.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Protection of membrane penetrations for listed metallic boxes
  • Tested in accordance with ASTM E814 (UL 1479) (Certified as a Wall Opening Protective Material, UL Category CLIV).
  • STC rating of 62 when tested in a STC 62 rated wall assembly

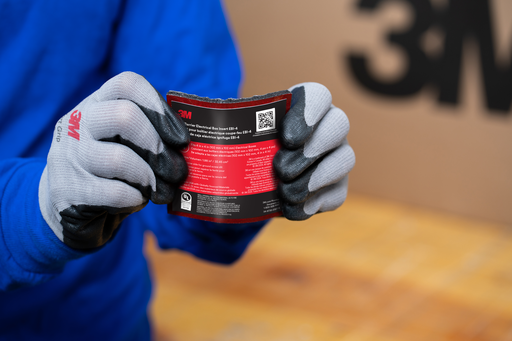

  • Flexible

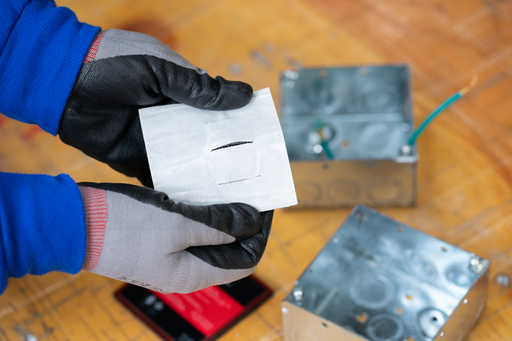

  • Convenient slits for access to wiring
  • Great for new construction and retro fit applications
