ABB ELL6-G PVC CTD ELBOW 90D 6IN ST

Manufacturer: Thomas & Betts / Ocal | Catalog # ELL6-G | North Coast Part # 25068
$3,346.22/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

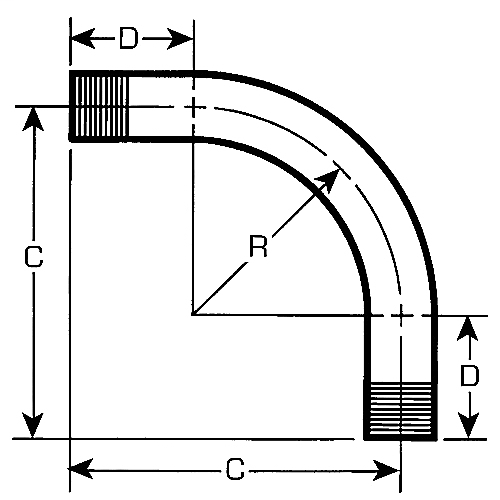

Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 6 Inch/155 Metric, Angle 90 Degrees, Radius 30 Inch/762.00 Millimeters, Offset 39 Inch/990.60 Millimeters, Straight End 9 Inch/228.60 Millimeters, Unbent Length 65.12 Inch/1,654.15 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Technical Information

Applications
To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Bend Radius
30 Inch
Material
Steel
Size
6 in
TC Connection
90 Degree Bend
Trade Size
6 Inch
Type
Conduit Elbow - Standard Radius

Manufacturer Information

Brand
Ocal Conduit

General Product Info

12-Digit UPC
704508370909
Color
Gray
Finish
Hot Dipped Galvanized
GTiN
00704508370909
Product UPC
70450837090

Dimensions

Length
65.12 Inch; 1,654.15 mm
Certifications
  • CSA
  • UL
Features
  • A minimum .040 in. (40 mil) PVC coating on the exterior.
  • A nominal .002 in. (2 mil) blue urethane on the interior.
  • Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
  • Color coded thread protectors on each end.
Notes
  • Metric size designator (ANSI C80. 1-1994)
  • Dimensional values are of uncoated elbows.
