3M 5317 (3 Splices/Kit) Motor Lead Splicing Kit

Manufacturer: 3M | Catalog # 7000027611 | North Coast Part # 266766
$286.37/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page MDM Safety Data Sheet

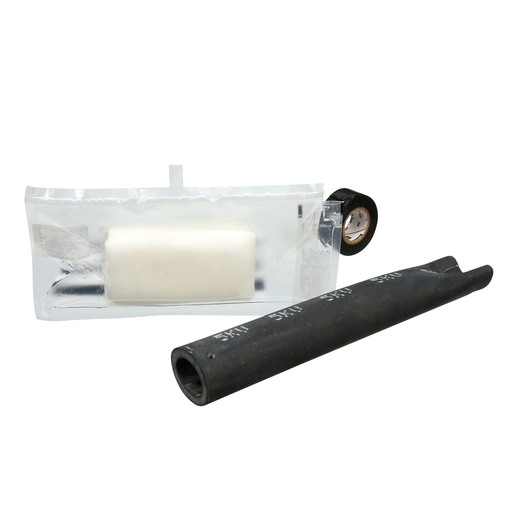

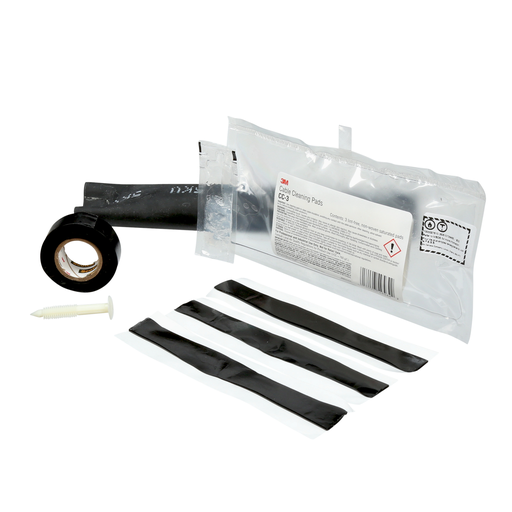

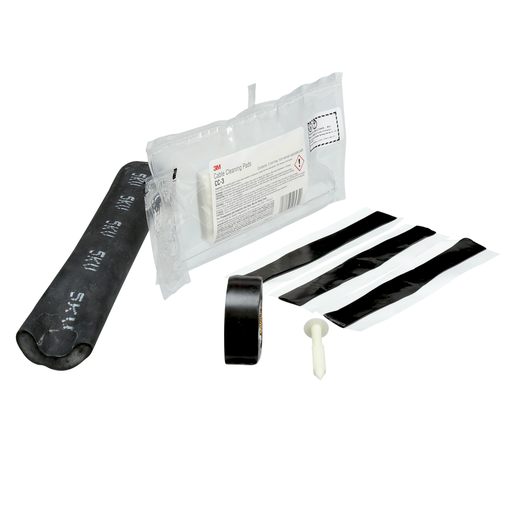

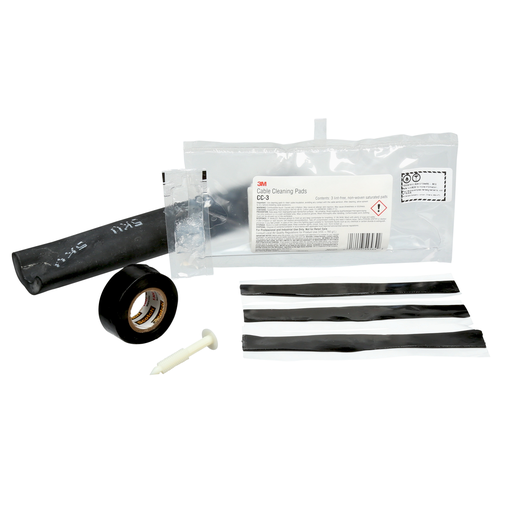

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 1/0 AWG-250 kcmil (60-120 sq mm), motor lead 2 AWG-250 kcmil (35-120 sq mm).

Technical Information

Conductor Size
2-1/0 AWG/4-1/0 AWG
Connection Type
Pigtail
Material
Rubber
Operating Temperature
90degrees C
Splice Type
Pigtail Only
Temperature Rating
90 degrees C
Type
Motor Lead Pigtail Splice
Voltage
8 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007083146
Color
Black
GTiN
00054007083146
Product UPC
05400708314
Used With
Copper Compression, 1 or 2 Hole Lugs

Dimensions

Length
9-1/2 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Designed for use with copper compression, 1 or 2 hole lugs
  • Has a durable EPDM rubber construction
