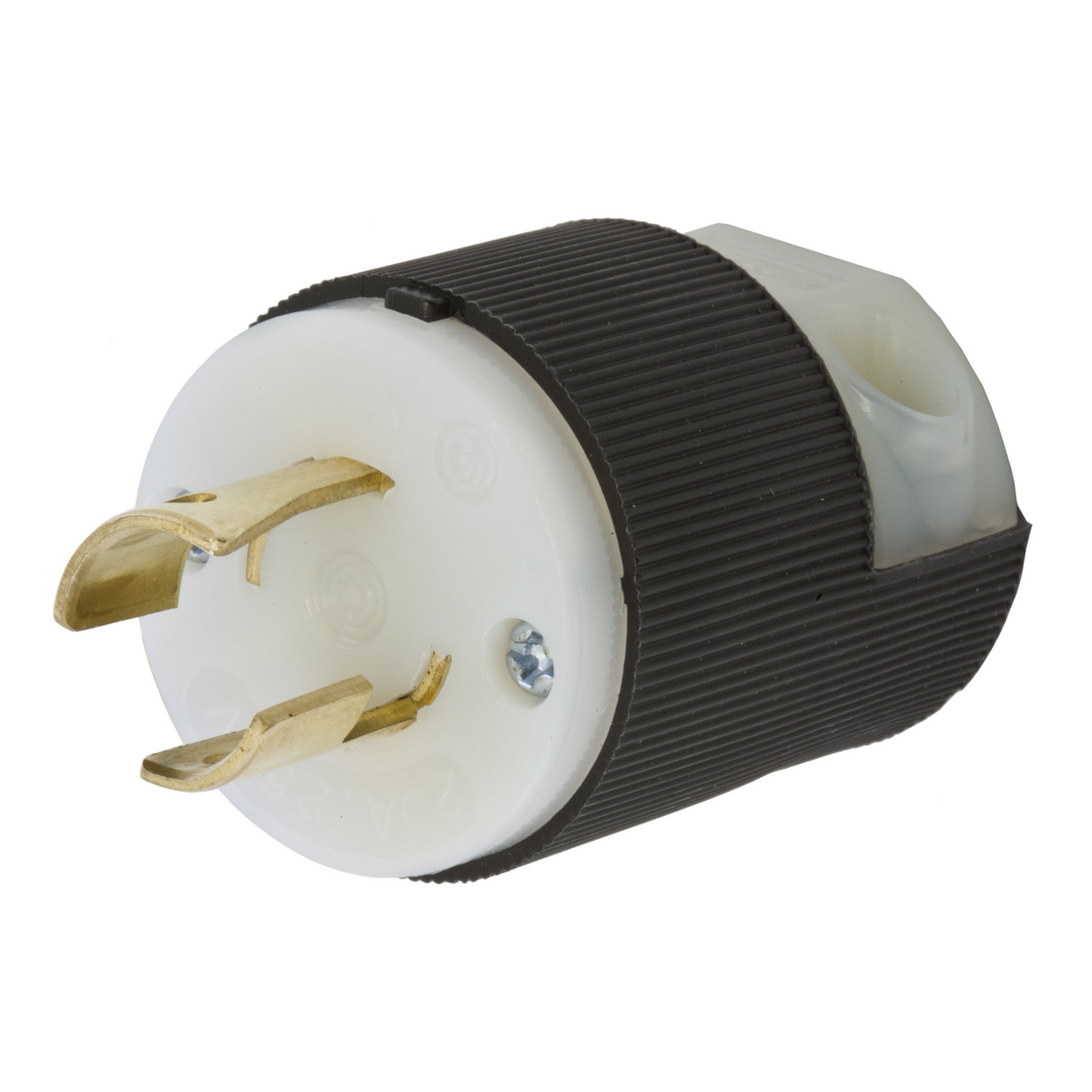

Product image for Hubbell HBL7102C 20 Amp 250 Volt 2-Pole 4-Wire NEMA L2-20P Black and White Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL7102C 20 Amp 250 Volt 2-Pole 4-Wire NEMA L2-20P Black and White Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL7102C | North Coast Part # 26697
$40.12/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 250V, 2-Pole 2-Wire Non-Grounding, NEMA L2-20P, Screw Terminal, Black and White Nylon, Polarized.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial Application
Conductor Size
12-10 AWG
Cord Type
Portable
Current
20 Amp
Grounding
No
Material
Composite
Mounting Type
Surface
NEMA

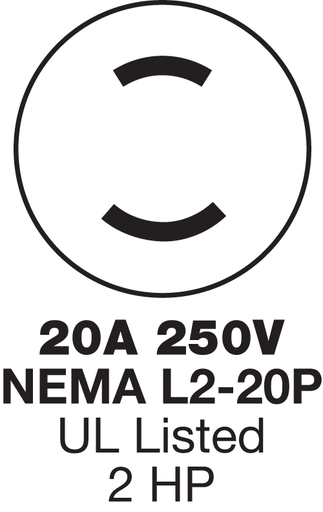

L2-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.43,Fed.Spec. W-C-597,UL 499
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Standard Sized
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
2
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585177052
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585177052
Product UPC
78358517705
Weight
0.15 lb

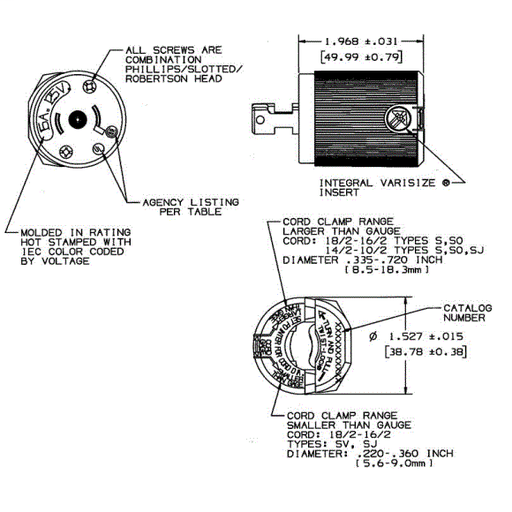

Dimensions

Height
1.97 Inch
Length
1.53 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Self-threading screws specially designed for secure assembly
  • Wiring chambers separate and positively insulate conductors and promote easy inspection
  • Standard Product
