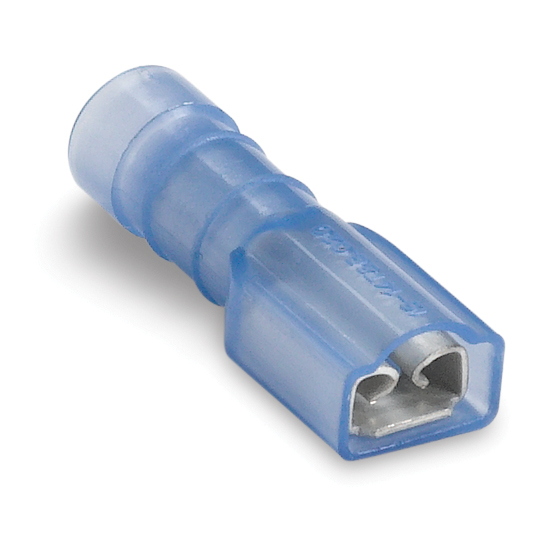

Thomas & Betts 14RBD-18277 16-14 AWG Wire Range .89 Inch Length .187 Inch Tab Size Fully Insulated Nylon Female Disconnect

Manufacturer: Thomas & Betts | Catalog # 14RBD-18277 | North Coast Part # 26955
$293.98 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
100 available

For Pick Up

at Auburn opens monday 5:00am pt
100 available

For Delivery

Order by Saturday 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

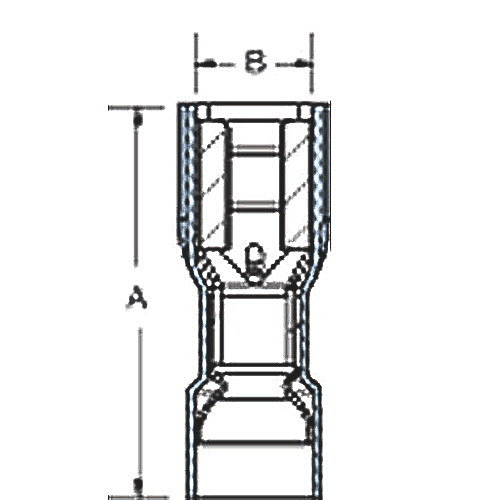

Nylon Fully Insulated Female Disconnect, Length .89 Inches, Width .30 Inches, Maximum Insulation .170, Tab Size .187x.020 Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
16-14 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Long Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210818535
Color
Blue
Finish
Electro-Tin Plated
GTiN
05414363138099
Product UPC
78621081853
Used With
Round Conductors
Features
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Certifications
  • CSA
  • UL
