Thomas & Betts F4028 14 AWG 2.5 mm.. Wire Range Nylon Insulated Old DIN Ferrule

Manufacturer: Thomas & Betts | Catalog # F4028 | North Coast Part # 276200
$79.39/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

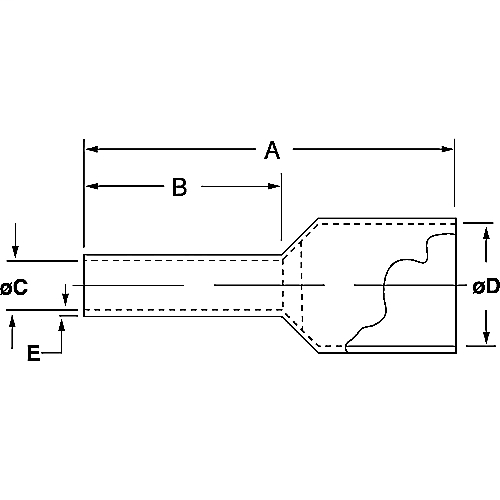

Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .165 Inches/4.2mm, Wire Range #14 AWG/2.50mm2, Color Gray, Copper, Tin Plated

Technical Information

Conductor Size
14 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.315 in
Temperature Rating
105 degrees C
Type
Standard, Old DIN
Wire Size
14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336794
Color
Gray
Finish
Tin Plated
GTiN
00786210336794
Product UPC
78621033679

Dimensions

Inside Diameter
0.091 in
Overall Length
0.571 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
