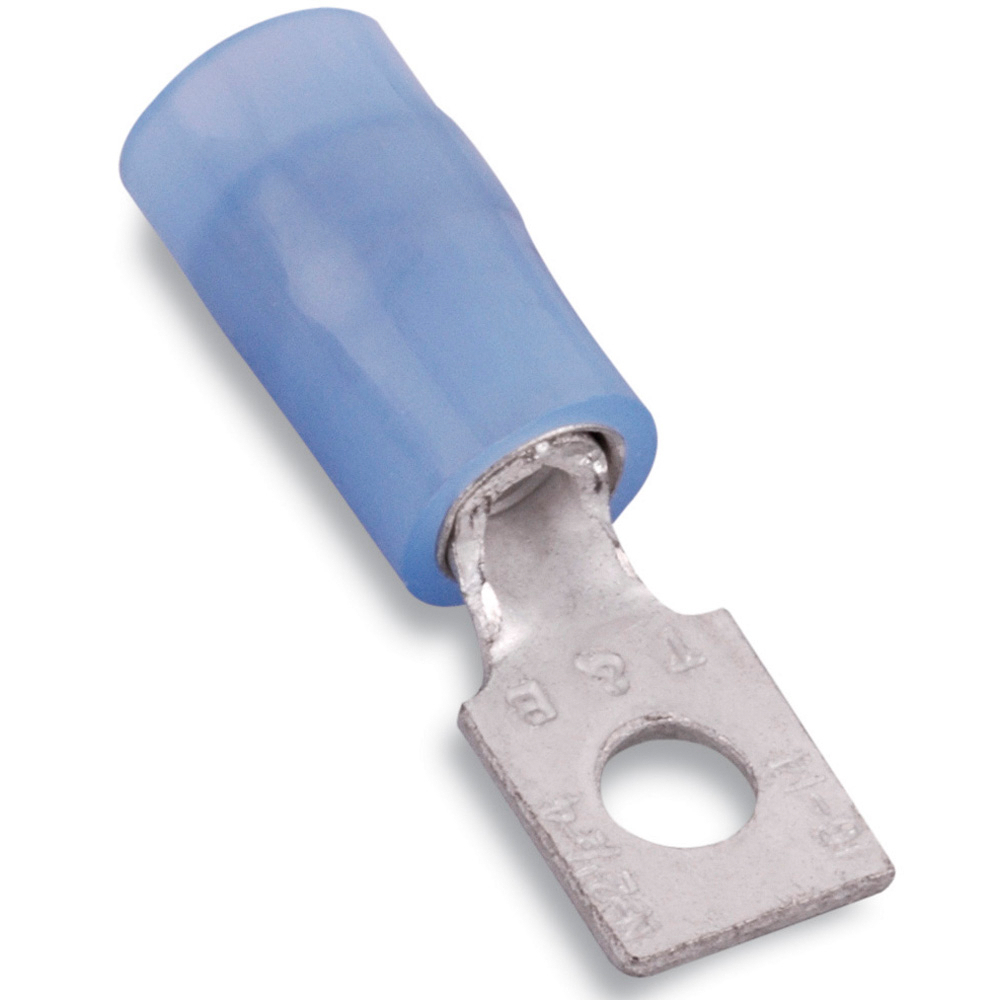

Thomas & Betts RB484 Nylon-Insulated Rectangular Ring Terminal - #16-14, #6bolt (1000/Pkg)

Manufacturer: Thomas & Betts | Catalog # RB484 | North Coast Part # 285461
$266.22/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Nylon Insulated Rectangular Ring Terminal, Length 1.015 Inches, Width .237 Inches, Bolt Hole #6, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Applications
For Copper Conductors
Barrel Type
Brazed Seam
Conductor Size
16-14 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Type
Rectangular
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210818290
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363158639
Product UPC
78621081829
Used With
ERG4001, WT145C Crimp Tool

Dimensions

Length
1.01 Inch
Width
0.23 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • RA, RB, RC484 for use with BU-Ships terminal board types 10TB and 11TB.
  • 16-14 ga. = 2 1/2-4 Navy
