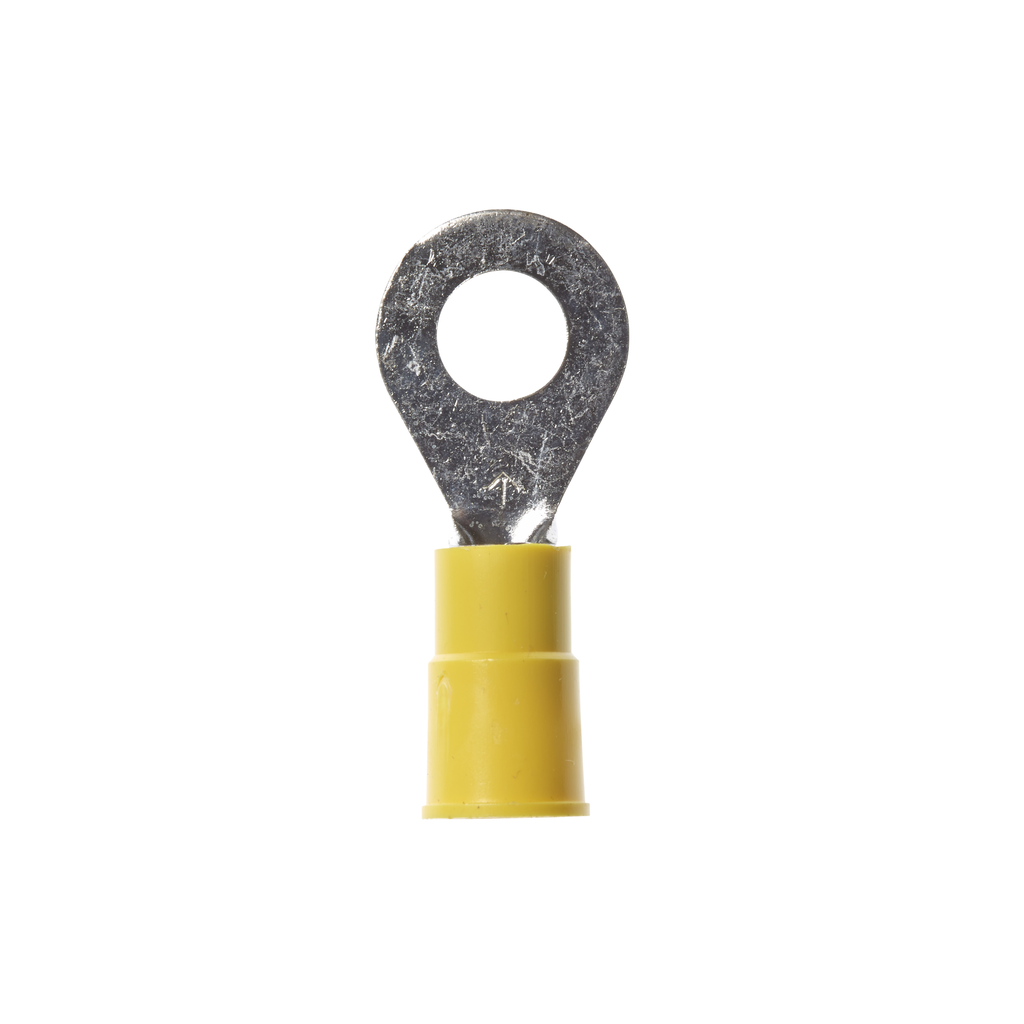

Product image for 3M RV10-38Q Highland 25/Bag Vinyl Insulated Ring
Image thumbnail 0
Image thumbnail 1
Email

3M RV10-38Q Highland 25/Bag Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7000133673 | North Coast Part # 286897
$19.63/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
3M™ Highland™ Ring Terminal RV10-38Q accepts a wire range of AWG 12-10 and has a stud size of 3/8 inch. This ring is a standard style of tongue and is considered the safest and most reliable 3M™ Highland™ Terminal. The 3M™ Highland™ Ring Terminals are UL Listed and CSA Certified.

Technical Information

Conductor Size
12-10 AWG
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
CSA,E2186,UL
TC Connection
Ring
Terminal Size
3/8
Type
Bell End
Wire Size
12-10 AWG

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600344
Color
Yellow
GTiN
00051128600344
Product UPC
05112860034

Dimensions

Overall Length
1.26 in
Width
0.54 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
