Product image for Thomas & Betts F4007 24 AWG .25 mm.. Wire Range Nylon Insulated Old DIN Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F4007 24 AWG .25 mm.. Wire Range Nylon Insulated Old DIN Ferrule

Manufacturer: Thomas & Betts | Catalog # F4007 | North Coast Part # 288245
$83.22/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Thursday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

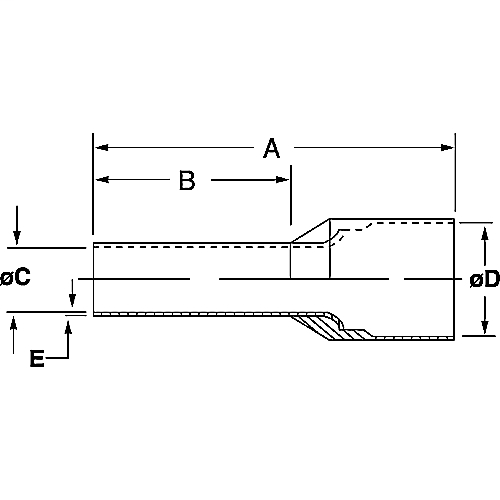

Polypropylene-Insulated Ferrule, Total Length .492 Inches/12.5mm, Pin Length .315 Inches/8.0mm, Pin Diameter .031 Inches/.8mm, Base Diameter .079 Inches/2.0mm, Wire Range #24 AWG/.25mm2, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
24 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Strip Length
8 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
24 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210729657
Color
Yellow
Finish
Electro Tin Plated
GTiN
05415022180718
Product UPC
78621072965
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
