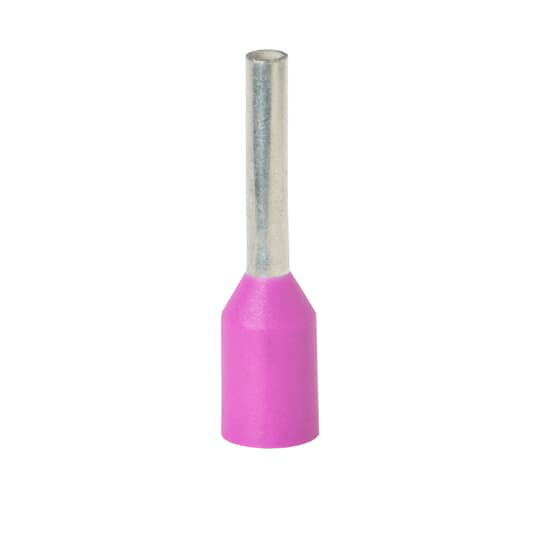

Product image for Thomas & Betts F4009 22 AWG .34 mm.. Wire Range Nylon Insulated Old DIN Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F4009 22 AWG .34 mm.. Wire Range Nylon Insulated Old DIN Ferrule

Manufacturer: Thomas & Betts | Catalog # F4009 | North Coast Part # 288246
$83.12/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Polypropylene-Insulated Ferrule, Total Length .492 Inches/12.5mm, Pin Length .315 Inches/8.0mm, Pin Diameter .031 Inches/.8mm, Base Diameter .079 Inches/2.0mm, Wire Range #22 AWG/.34mm2, Color Purple, Copper, Tin Plated

Technical Information

Conductor Size
22 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Strip Length
8 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
22 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210729671
Color
Purple
Finish
Electro Tin Plated
GTiN
05415022255287
Product UPC
78621072967
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
