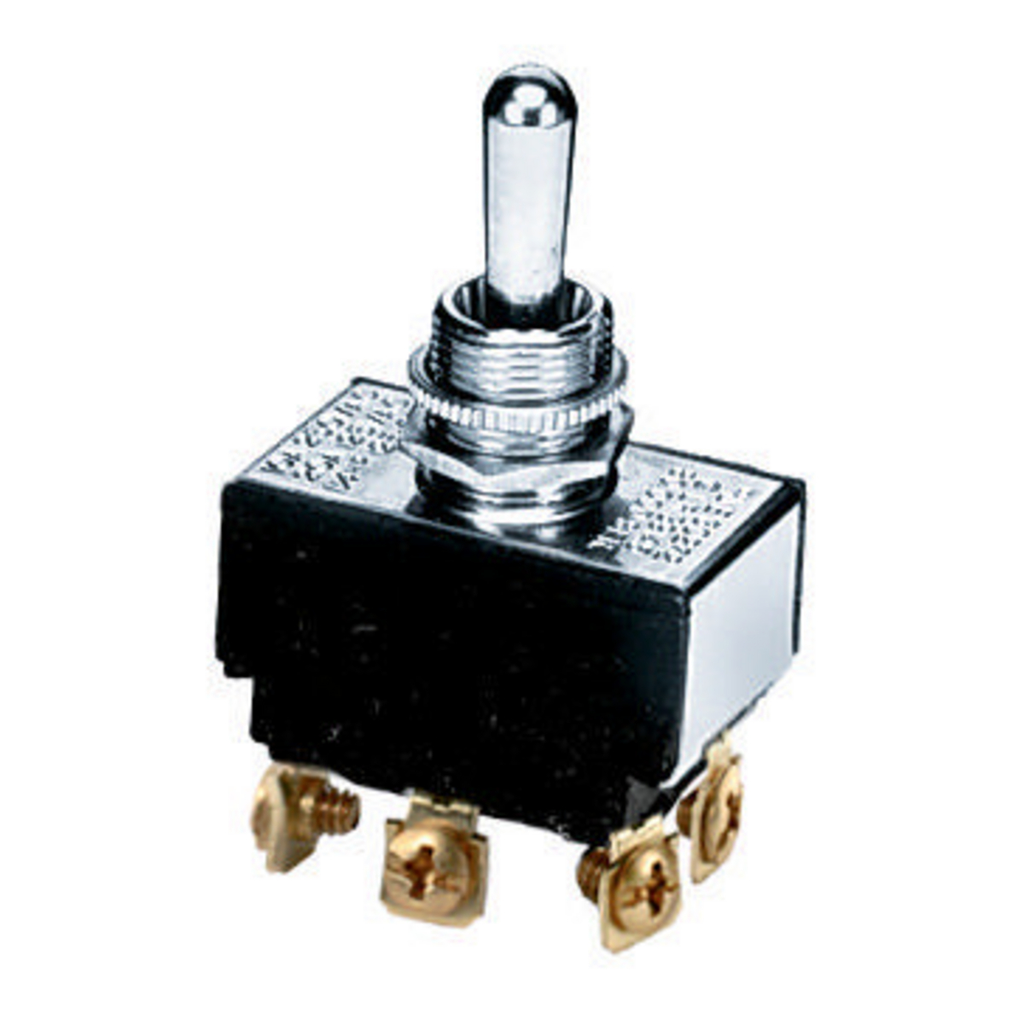

Product image for Hubbell HBL223SPMM PANEL SW, DPDT, MOM CTR OFF, SPADE TERM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL223SPMM PANEL SW, DPDT, MOM CTR OFF, SPADE TERM

Manufacturer: Hubbell / Kellems | Catalog # HBL223SPMM | North Coast Part # 291576
$36.79/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Double Pole DoubleThrow Center Off 10A 250V/10A

Technical Information

Action
Momentary On/Off/Momentary On
Actuator
Bat Handle
Amperage
20 Amp
Applications
2-Circuit Momentary On/Off/Momentary On
Contact Configuration
DPDT
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
1.5 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Spade Terminal
TC Connection
Spade Terminal
Type
Standard, Heavy Duty, 3-Position
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585017150
Color
Metallic
GTiN
00783585017150
Product Series
Double Pole/Double Throw
Product UPC
78358501715
Weight
0.2 lb

Dimensions

Height
1.3 Inch
Length
2.27 Inch
Width
0.76 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel Plated for Corrosion Resistance
