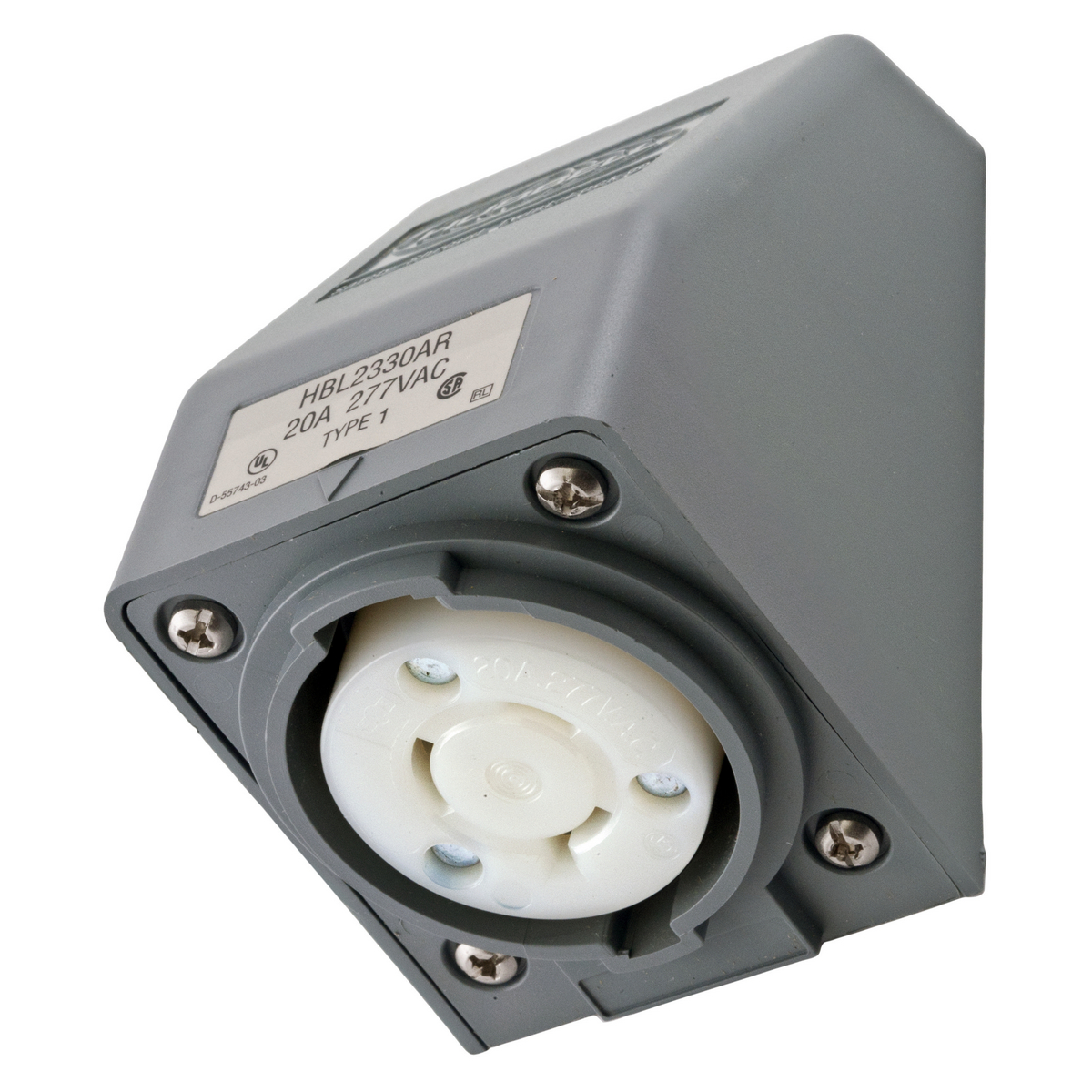

Hubbell HBL2330AR Locking S/SHRD Receptacle, L7-20R, ANG SRF MT, GY

Manufacturer: Hubbell / Kellems | Catalog # HBL2330AR | North Coast Part # 292438
$89.71/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Angled Safety-Shroud® Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20R, Screw Terminal, RPT angle housing, One gang, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L7-20R
Number of Gangs
1 Gang
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass,Steel, Zinc Plated
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
1-Gang, Angled, Shrouded, Heavy Duty
Voltage
277 Volt
Wattage
5540 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234168
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585234168
Housing Material
Impact Modified PBT
Product UPC
78358523416
Weight
0.65 lb

Dimensions

Height
3.14 Inch
Length
4.77 Inch
Width
2.85 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Angled Housing
