3M 7100166936 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7100166936 | North Coast Part # 29680
$1.88/ea
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

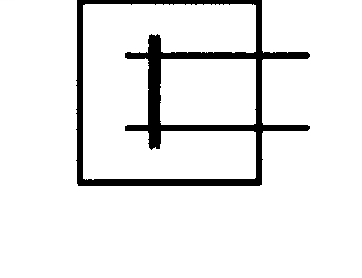

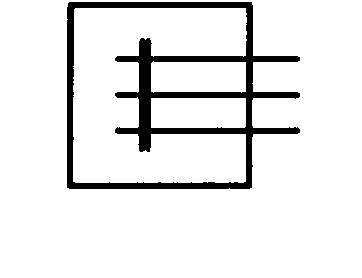

3M™ Scotchlok™ Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant, and moisture resistant.

Technical Information

Applications
For Low Voltage Applications and used to Connect 2 or 3 Wires While Insulating the Connection
Cable Size
22-14 AWG
Cable Type
Solid/Stranded Copper
Conductor Size
14 AWG
Connection Type
Pigtail
Contact Material
Brass
Flame Retardant
Yes
Insulation Diameter Range
3.8 mm
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105 degrees C
Type
Self Stripping, Fully Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007092308
Color
Blue Cap and White Body
GTiN
10054007092305
Housing Material
Flame Retardant Nylon
Product UPC
05400709230

Certifications and Compliance

Country of Origin
USA
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
  • Accommodates 22 to 14 AWG solid/stranded
