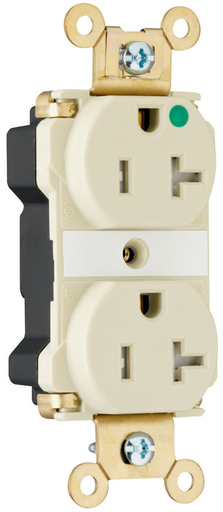

Product image for Pass & Seymour PTTR63-HI PlugTail™ Extra Heavy-Duty Hospital Grade Tamper-Resistant Duplex Receptacle, 20A 125V - Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour PTTR63-HI PlugTail™ Extra Heavy-Duty Hospital Grade Tamper-Resistant Duplex Receptacle, 20A 125V - Ivory

Manufacturer: Legrand / Pass & Seymour | Catalog # PTTR63HI | North Coast Part # 298408
$65.71/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
PlugTail Extra Heavy-Duty Hospital Grade Tamper-Resistant Duplex Receptacle 20amp 125volt BrownFor detailed PlugTail information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.625 L x .866 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007860573
Color
Ivory
GTiN
00785007860573
Product Series
PlugTail
Product UPC
78500786057
UNSPSC
39121406

Dimensions

Depth
0.9 Inch
Height
3.281 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Available in 'SP' series in Standard, Junior-Jumbo, and Jumbo sizes.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
  • Federal Spec Listed
