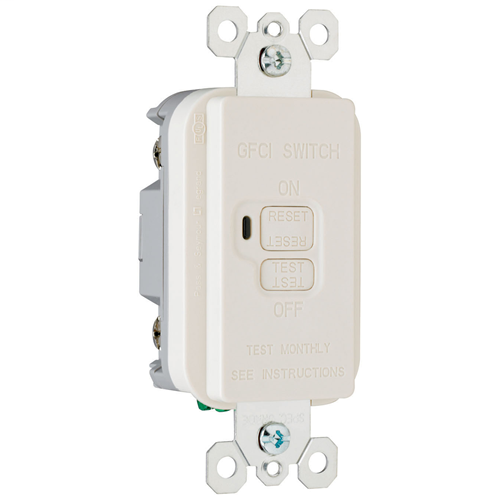

Product image for Pass & Seymour 2085-LA GFCI DEAD FRONT, 10kA SCCR,20A 125VAC, Light Almond
Image thumbnail 0
Image thumbnail 1
Email

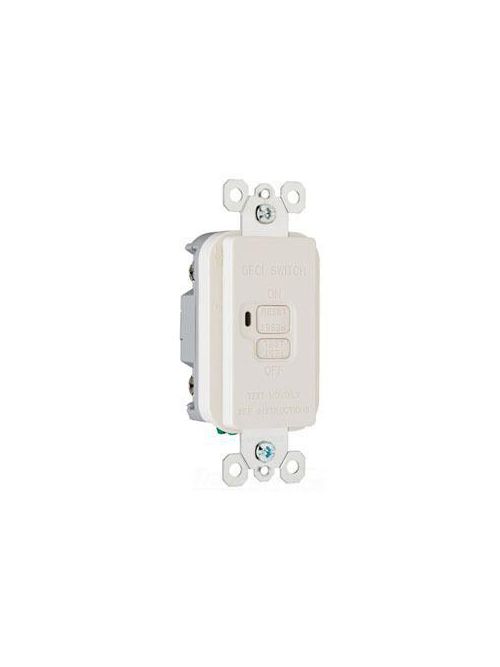

Pass & Seymour 2085-LA GFCI DEAD FRONT, 10kA SCCR,20A 125VAC, Light Almond

Manufacturer: Legrand / Pass & Seymour | Catalog # 2085LA | North Coast Part # 298977
$36.79/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ Protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
20 Amp
Grade
Specification
NEMA
5-20R
Style
Decorator
Type
Decorator, Dead Front
Voltage
125 Volt

Manufacturer Information

Brand
Legrand

General Product Info

12-Digit UPC
785007423419
Color
Light Almond
GTiN
00785007423419
Product UPC
78500742341

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • For covering patents, see www.legrand.us/patents.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • 10kA short circuit rating.
  • Ground screw has a back wire clamp for easy installation.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire. Two back wire holes per terminal. GFCIs with Auto-Ground assure a positive ground to metal box.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles. FSUL Listed (Federal Specification WC596). Trip indicator light (red LED).
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Extra-long strap. Button colors match the device face. Dual-direction test and reset buttons. Class A rated GFCI. Supplied with matching TP26 nylon wall plate. Tri-drive screws.
Available Options
  • Spec Grade Dead Front 20A GFCI, White
  • Spec Grade Dead Front 20A GFCI, Ivory
  • Spec Grade Dead Front 20A GFCI, Light Almond
  • Spec Grade Dead Front 20A GFCI, Black
