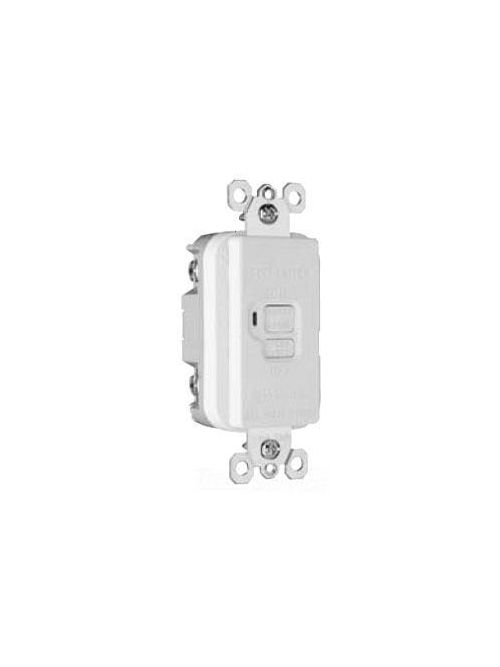

Product image for Pass & Seymour 2085-W 20 Amp 125 VAC 2-Wire NEMA 5-20R White Thermoplastic Decorator Dead Front GFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2085-W 20 Amp 125 VAC 2-Wire NEMA 5-20R White Thermoplastic Decorator Dead Front GFCI Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # 2085W | North Coast Part # 298978
$36.79/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ Protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
20 Amp
Connection Type
Screw Terminal
Grade
Specification
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-20R
Style
Decorator
Type
Decorator, Dead Front
Voltage
125 Volt

Manufacturer Information

Brand
Legrand

General Product Info

12-Digit UPC
785007423426
Color
White
Finish
Matte
GTiN
00785007423426
Product UPC
78500742342

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire. Two back wire holes per terminal. GFCIs with Auto-Ground assure a positive ground to metal box.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles. FSUL Listed (Federal Specification WC596). Trip indicator light (red LED).
  • 10kA short circuit rating.
  • Ground screw has a back wire clamp for easy installation.
  • For covering patents, see www.legrand.us/patents.
  • Extra-long strap. Button colors match the device face. Dual-direction test and reset buttons. Class A rated GFCI. Supplied with matching TP26 nylon wall plate. Tri-drive screws.
Available Options
  • Spec Grade Dead Front 20A GFCI, Light Almond
  • Spec Grade Dead Front 20A GFCI, Black
  • Spec Grade Dead Front 20A GFCI, Ivory
