Thomas & Betts MD6F-2 Motor Disconnect

Manufacturer: Thomas & Betts | Catalog # MD6F-2 | North Coast Part # 30011
$5,222.74/c (100 ea)
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual

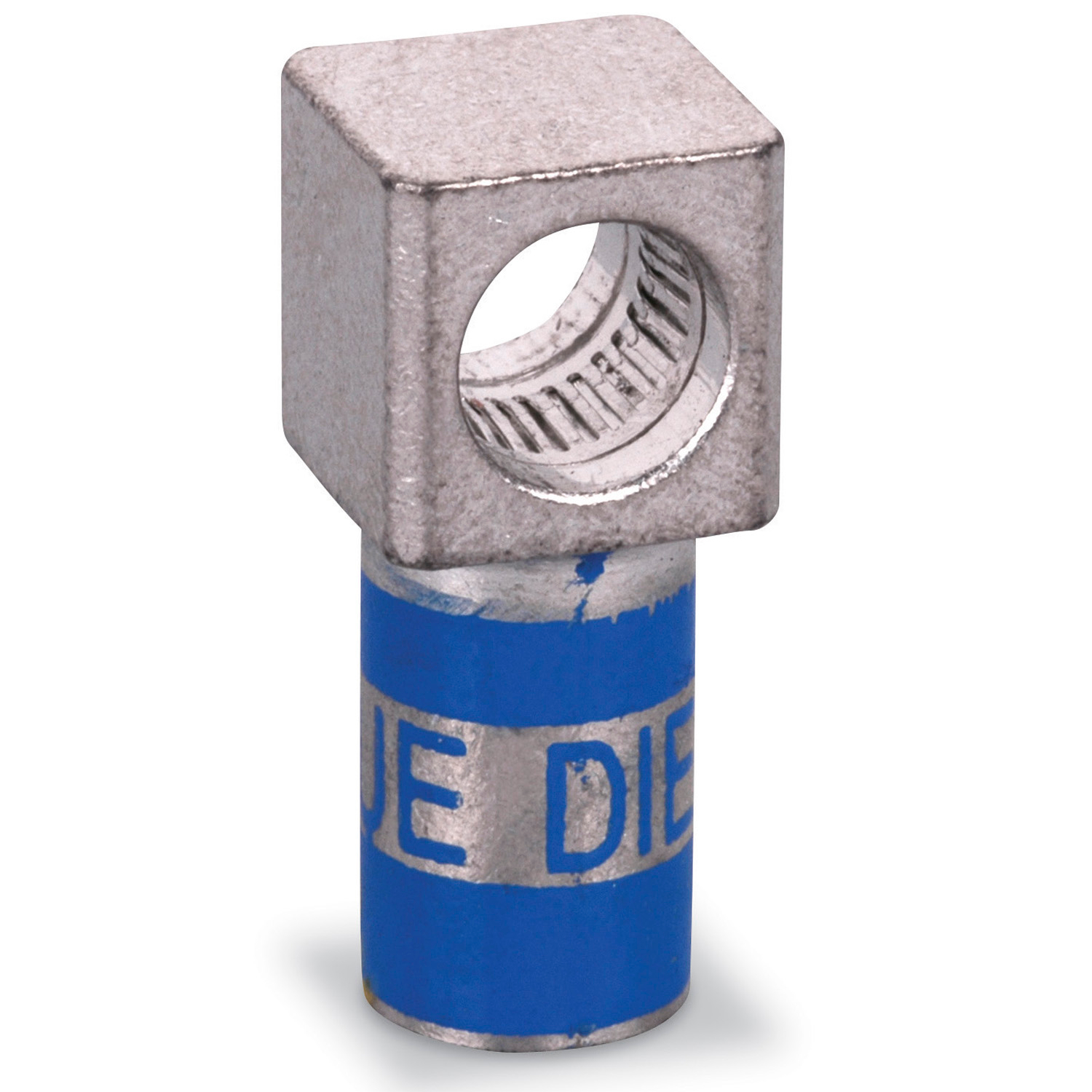

KUBE Female Copper Motor Pigtail Disconnect, Wire Size 6 AWG, Body Size 2, Die Color Code Blue

Technical Information

Contact Material
Copper
Material
Copper
Standard
UL E9809
Type
Motor Lead Female Disconnect
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210786872
Color
Blue
Finish
Tin Plated
GTiN
00786210786872
Product UPC
78621078687
Features
  • Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.
  • Female disconnects equipped with beryllium copper louvered contact bands for dependable connections.
  • Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
Certifications
  • UL
  • CSA
Notes
  • Always use the same body size when selecting male and female disconnects. Use insulating boots matching the disconnect body size. To protect the connection from moisture and dirt, use sealing compound catalog number MDBOOT-SEAL.
