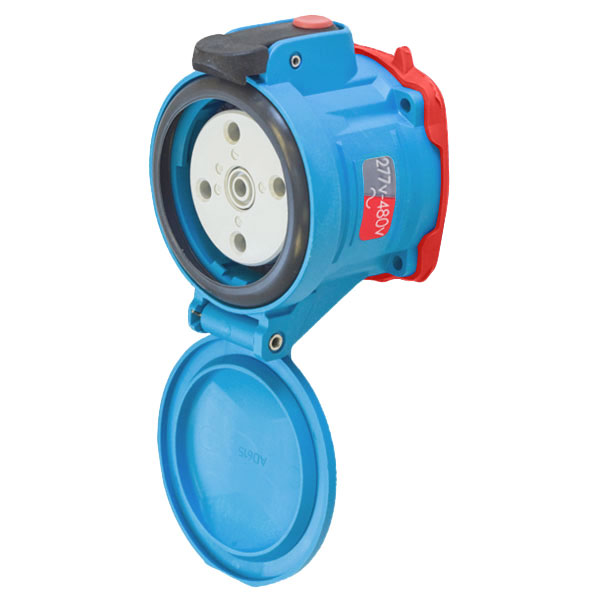

Product image for Meltric 63-64047 DSN60 Receptacle, Poly, Blue, Size 3, Type 4X & IP69, 3P+N+G, 60A, 277/480 VAC, 60 Hz
Email

Meltric 63-64047 DSN60 Receptacle, Poly, Blue, Size 3, Type 4X & IP69, 3P+N+G, 60A, 277/480 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 63-64047 | North Coast Part # 304071
$713.09/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Meltric; Receptacle; Decontactor; DSN60, Switch Rated; Material: Polyster; Number Of Poles: 3; Wire Size: Min 12 AWG, Max 4 AWG; Auxiliary Contacts - Max 14 AWG; Amperage Rating: 60 AMP; Voltage Rating: 277/480 VAC; Color: Blue; Nema Rating: 4X; Connectio

Technical Information

Amperage
60 Amp
Conductor Size
14-4 AWG
Contact Configuration
3P+N+G
Current
60 Amp
Frequency
60 Hz
Horsepower
20 hp
IP Rating
66,67,69
Material
Poly
Max Operating Temperature
140 degrees F
Number of Poles
3 Pole
Short Circuit Current Ratng
125 A
Size
3
Strip Length
3/4 in
TC Connection
Female
Temperature Rating
-40 to 140 F
Type
DSN60, Switch Rated
Voltage
277 Volt
Wire Size
12-4 AWG

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474548229
Color
Blue
GTiN
00784474548229
Product Series
12
Product UPC
78447454822

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
