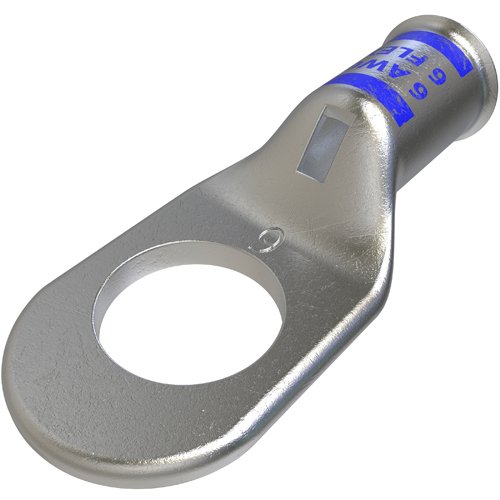

Product image for Ilsco CCL-6-38 Copper Compression Lug, Conductor Size 6, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco CCL-6-38 Copper Compression Lug, Conductor Size 6, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-6-38 | North Coast Part # 306739
$4.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 6 Str, sight window, Round tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,

Technical Information

Applications
Terminating Connector
Bolt Size
3/8 IN
Color Coding
Blue
Conductor Size
6 AWG
Material
Copper
Number of Holes
1 Hole
Size
L:1.41;W:0.605;H:0.385 IN
Standard
CSA,E2186,UL
Stud Size
3/8 in
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
600 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031164
Color
Silver
Finish
Electro-Tin Plated
GTiN
00783669031164
Product UPC
78366903116

Dimensions

Inside Diameter
0.232 in
Outside Diameter
0.299 in
Overall Length
1.409 in
