Thomas & Betts C55PT 12 to 10 AWG Metallic Electrotinned Copper Non-Insulated Pin Terminal

Manufacturer: Thomas & Betts | Catalog # C55PT | North Coast Part # 30756
$139.87/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

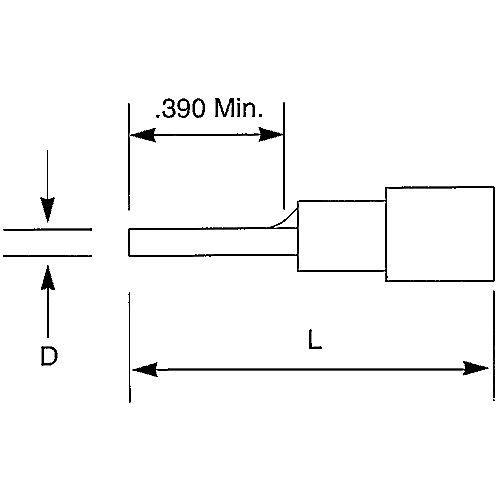

Non-Insulated Pin Terminal, Length .76 Inches, Pin Length .390 Inches, Diameter .106 Inches, Wire Range #12-#10 AWG, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Insulation Type
Non-Insulated
Material
Aluminum
Temperature Rating
150 degrees C
Type
Non-Insulated
Voltage
300 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210033907
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363149132
Product UPC
78621003390

Dimensions

Length
0.76 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
