ABB LRELL3X24-G PVC CTD ELB 90D 3IN

Manufacturer: Thomas & Betts / Ocal | Catalog # LRELL3X24-G | North Coast Part # 30838
$1,389.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

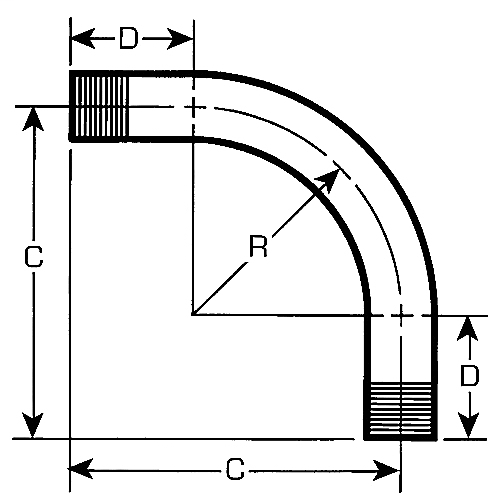

Large Radius Elbow, 40 Mil PVC Coated, Pipe Size 3 Inch/78 Metric, Angle 90 Degrees, Radius 24 Inch/609.60 Millimeters, Offset 2 Feet 11 Inch/889.00 Millimeters, Straight End 11 Inch/279.40 Millimeters, Unbent Length 59 Inch/1,498.60 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Technical Information

Applications
To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Bend Radius
24 Inch
Connection Type
90 Degree Bend
Material
Metal,Steel,Steel
Size
3 in
TC Connection
90 Degree Bend
Trade Size
3 Inch
Type
Conduit Elbow - Large Radius

Manufacturer Information

Brand
Ocal Conduit

General Product Info

12-Digit UPC
704508395926
Box Quantity
1
Color
Gray
Finish
Hot Dipped Galvanized
GTiN
00704508395926
Product UPC
70450839592

Dimensions

Inside Diameter
78 mm
Length
59 Inch
Features
  • A minimum .040 inch (40 mil) PVC coating on the exterior.
  • A nominal .002 inch (2 mil) blue urethane on the interior.
  • Ocal-Blue large radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
  • Color coded thread protectors on each end.
