Hubbell HBL5236 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Brown Single Straight Blade Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL5236 | North Coast Part # 31025
$133.69/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

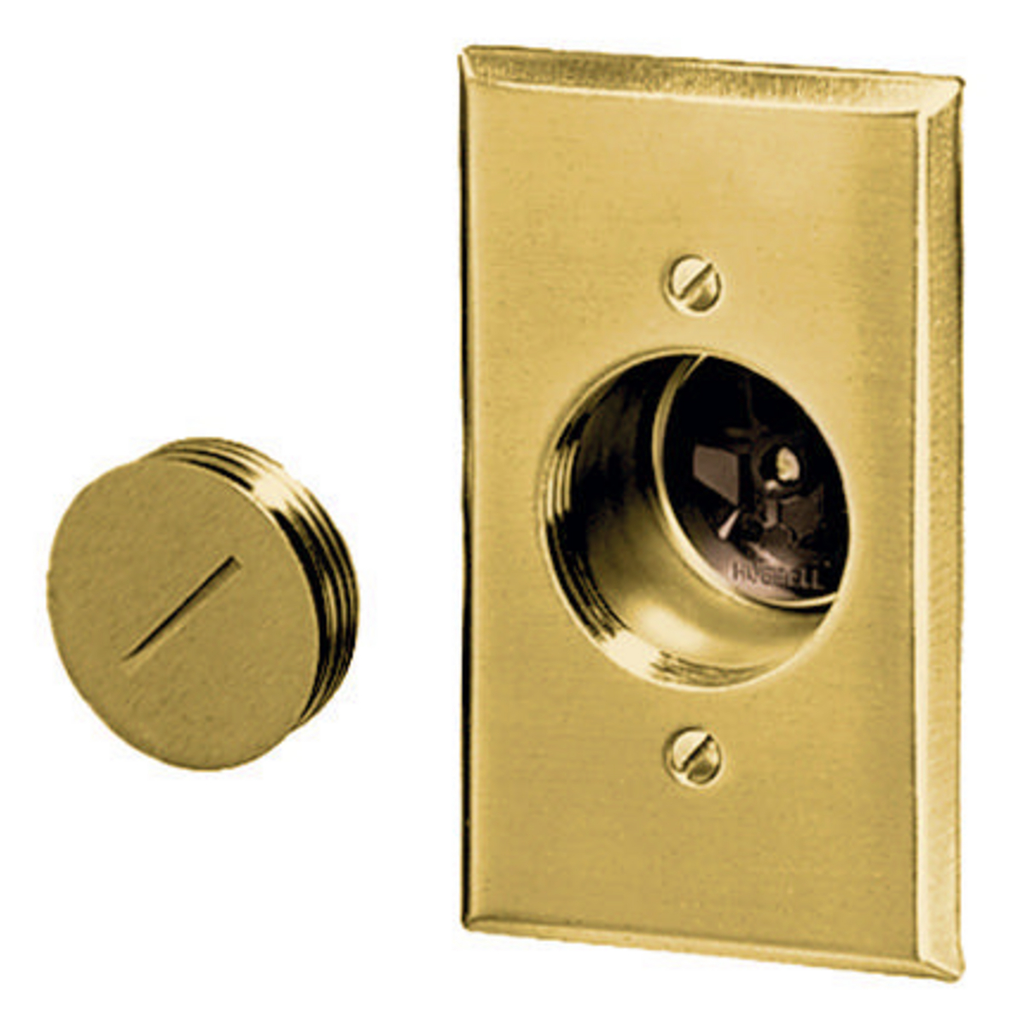

Straight Blade Devices, Miscellaneous Receptacles, Display type, brown phenolic,blank flush plug, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brass , Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Phenolic
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Phenolic
Grade
Commercial Specification
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
TC Connection
Screw, 6 Terminals
Type
Display Case
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013787
Color
Brown
Environmental Conditions
Indoor Only
GTiN
00783585013787
Product UPC
78358501378
Weight
0.55 lb

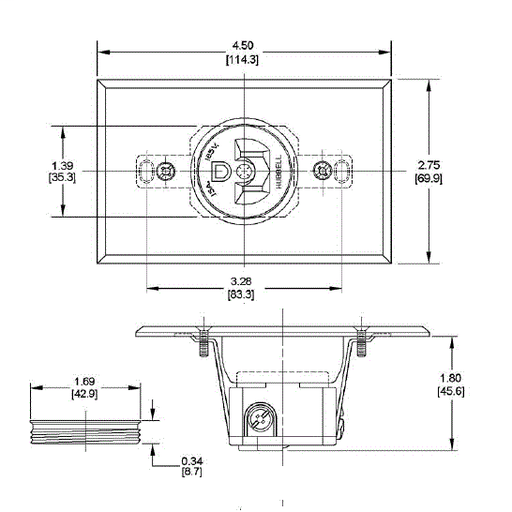

Dimensions

Height
1.8 Inch
Length
4-1/2 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Miscellaneous Receptacles
  • Display type
  • brown phenolic
  • blank flush plug
  • Display Case Receptacle
