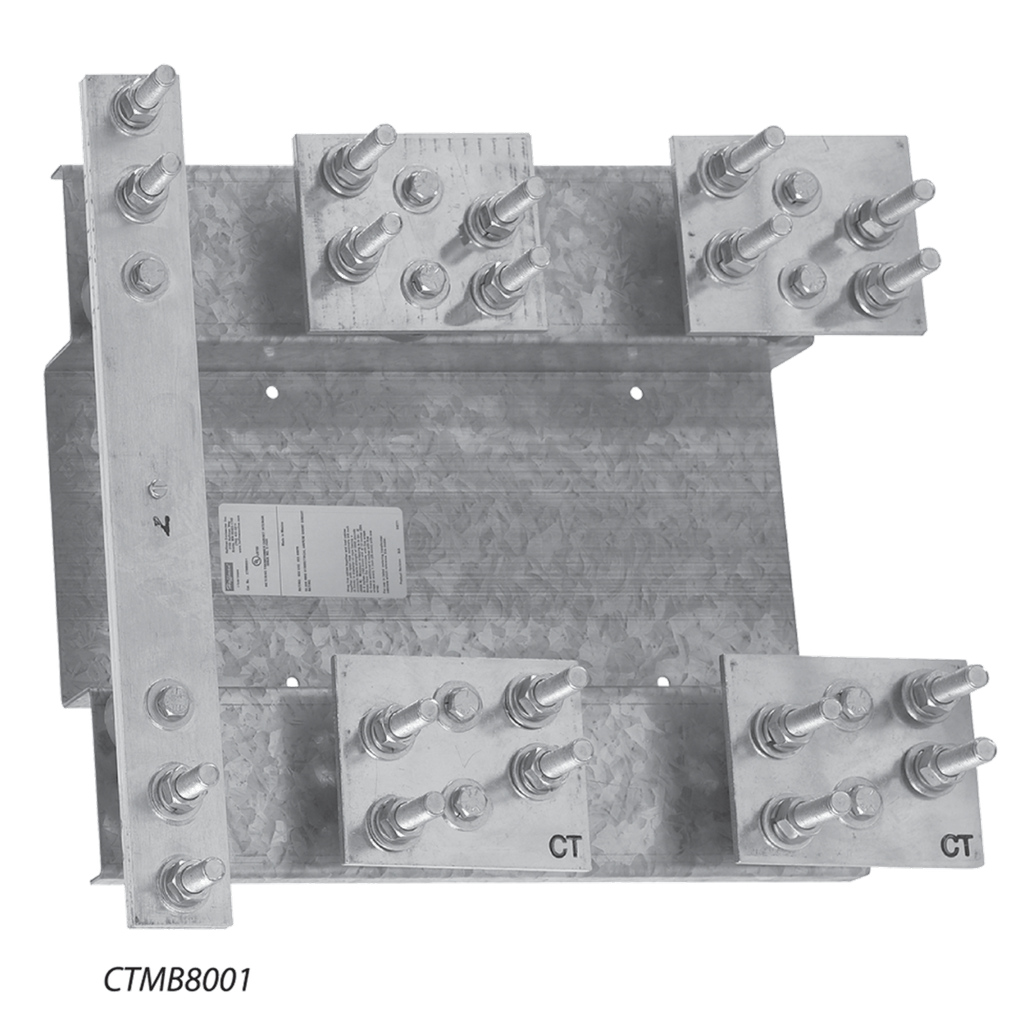

Product image for Hoffman CTMB8001 400 to 800 Amp 600 VAC 12 Gauge Galvanized Steel Mounting Base
Email

Hoffman CTMB8001 400 to 800 Amp 600 VAC 12 Gauge Galvanized Steel Mounting Base

Manufacturer: nVent Hoffman | Catalog # CTMB8001 | North Coast Part # 311273
$497.33/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
CT Mounting Base accommodates the preference difference between line and load connections inside a CT cabinet. The bases are available in three variations of conductor connection styles to match your application: 1/2-in. studs on 1-3/4-in. centers, a model with mechanical lugs and a model with lugs on one side and studs on the other. Pre-punched mounting base holes align with the studs in a CT cabinet

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Steel
Standard
UL 414 Listed; File E240312
Type
Current Transformer Cabinets and Terminal Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510144364
Finish
Galvanized
GTiN
00783510144364
Product UPC
78351014436
Weight
25 lb

Dimensions

Height
10 Inch
Length
25-1/2 Inch
Width
21.00 in
Features
  • Spacing for bar-type current transformer that conforms to ANSI 12.11
  • Conductor provisions: either mechanical lugs or 1/2-in. bolt on 1-3/4-in. centers with nut, spring and flat washer
  • Neutral bar with 10-32 tap screw
  • 12-gauge galvanized formed base has electrically isolated mount/termination platform
