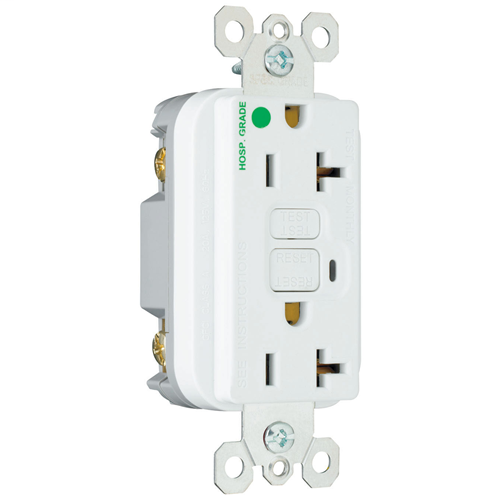

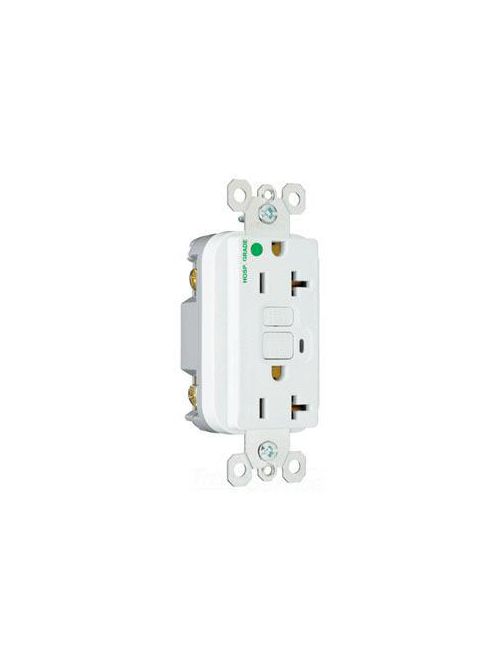

Product image for Pass & Seymour 2095-HGW 20a Hospital Grade GFCI Receptacle, White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2095-HGW 20a Hospital Grade GFCI Receptacle, White

Manufacturer: Legrand / Pass & Seymour | Catalog # 2095HGW | North Coast Part # 314265
$47.36/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
From the innovator of the product category, comes a full range of Pass & Seymour®GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our hospital-grade GFCI meet rigorous requirements of Hospital Grade supplement of UL498.

Technical Information

Amperage
20 Amp
Grade
Hospital
NEMA
5-20R
Style
Decorator
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007424164
Color
White
GTiN
00785007424164
Product UPC
78500742416

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Mounting screws are shipped captive in the device and wall plate for easier installation. High-impact-resistant thermoplastic construction.
  • Extra-long strap. Button colors match the device face. Dual-direction test and reset buttons. Class A rated GFCI. Supplied with matching TP26 nylon wall plate. Tri-drive screws.
  • 10kA SCCR, 20A/125VAC
  • 10kA short circuit rating.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire. Two back wire holes per terminal.
  • For covering patents, see www.legrand.us/patents.
  • Ground screw has a back wire clamp for easy installation. 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles. FSUL Listed (Federal Specification WC596). Trip indicator light (red LED).
Available Options
  • Hospital Grade 20A Duplex GFCI, Brown
  • Hospital Grade 20A Duplex GFCI, Ivory
  • Hospital Grade 20A Duplex GFCI, Light Almond
  • Hospital Grade 20A Duplex GFCI, Black
  • Hospital Grade 20A Duplex GFCI, Gray
  • Hospital Grade 20A Duplex GFCI, Red
