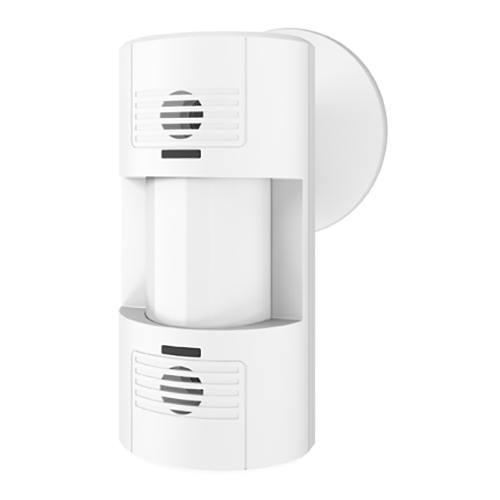

Product image for Lutron Electronics LOS-WDT-WH 1600 Square Foot White Dual Technology Wired Wall Occupancy Sensor
Image thumbnail 0
Image thumbnail 1
Email

Lutron Electronics LOS-WDT-WH 1600 Square Foot White Dual Technology Wired Wall Occupancy Sensor

Manufacturer: Lutron | Catalog # LOS-WDT-WH | North Coast Part # 320121
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Wired Wall Mount Dual Tech Sensor

Technical Information

Applications
For Lighting Control
Enclosure
Plastic
Enclosure Material
Plastic
Material
Plastic
Mounting Type
Ceiling
Operating Temperature
32 To 104 degrees F
Power Supply
20 V
Response Time
30 min
Sensing Range
1600 ft2 (148 m2), 110 degree field of view'
Sensor Type
Passive Infrared
Standard
CUL,UL
Temperature Rating
0 degrees C to 40 degrees C
Type
Dual Technology
Voltage
20-24 VDC

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
LOS-WDT series

General Product Info

12-Digit UPC
027557212410
Color
White
Environmental Conditions
For Indoor Use Only,Non-condensing,Relative Humidity Less Than 95 Percent
GTiN
00027557212410
Product UPC
02755721241

Certifications and Compliance

Country of Origin
China
Features
  • Intelligent, continually adapting sensor
  • Ultrasonic (US) combined with Passive Infrared (PIR) sensing provide high sensitivity, high noise immunity, and excellent false tripping immunity
  • Suited for complex environments that are difficult to control with single-technology sensors
  • Use in rooms with pendant fixtures and storage areas
  • Flexible base mounting on wall or ceiling
  • Aim and lock: base mount permits fast alignment
  • Non-Volatile Memory: settings saved in protected memory are not lost during power outages
  • 1600 ft (148 m) coverage when used where the ceiling height is between 8 ft to 12 ft (2.4 m to 3.7 m)
  • Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.
  • Can be mounted to a wall or ceiling for use in spaces with pendant fixtures, ceiling fans, or high ceilings (higher than 12 ft (3.7 m)
  • The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product
  • Designed to meet the challenges found in a wide variety of spaces, the sensor works well in spaces with overhead fans and space heaters
  • Ideal for use in work areas, storage facilities, storerooms, indoor garages, and rooms with pendant fixtures
  • Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity
  • The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors
  • Non-volatile memory: settings saved in protected memory are not lost during power outages
  • 1600 ft2 (148 m2) coverage when used where the ceiling height is between 8 to 12 ft (2.4 to 3.7 m)
Standards and Certifications
  • UL
  • CUL
  • cUL
