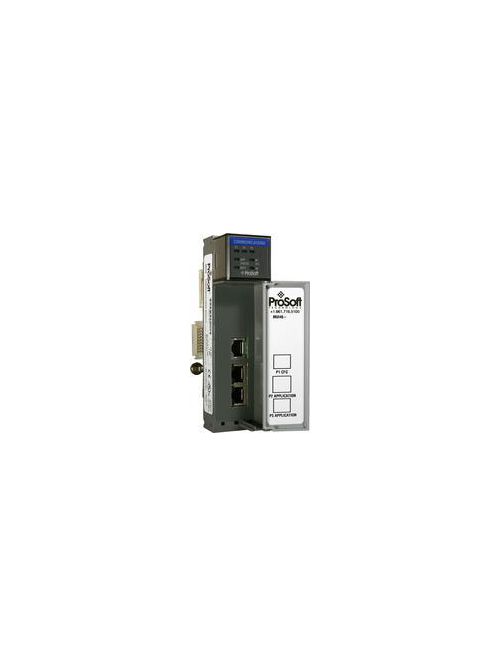

PROSOFT MVI46-MCM MODBUS MASTER/SLAVE COMMUNICATION MODULE

Manufacturer: Prosoft Technology, Inc. | Catalog # MVI46-MCM | North Coast Part # 320238
$3,415.46/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
The MVI46 Modbus Master/Slave Network Interface Module allows Rockwell Automation SLC processors to interface with Modbus-compatible devices. Compatible devices include not only Modicon PLCs but also a wide assortment of third-party devices found in nearly every industry.

Technical Information

Amperage
800 mA at 5.1 VDC
Applications
For Foreign Device Data Concentrator, Pipelines and Offshore Platforms, Food Processing, Mining, Pulp and Paper and SCADA Communications
Temperature Rating
32 - 140 degrees F
Terminal Type
RJ45, RS-232
Type
Modbus Master/Slave

Manufacturer Information

Brand
ProSoft Technology
Sub Brand
InRAx®

General Product Info

12-Digit UPC
992231000303
Used With
SLC 5/02 M0/M1 Capable Processors
Applications
  • Applications using the Modbus Communication Module can be found in many industrial sectors and in the following applications:
  • Foreign device data concentrator
  • Pipelines and offshore platforms
  • Food processing
  • Mining
  • Pulp and paper
  • SCADA communications
Features and Benefits
  • The inRAx Modbus Master/Slave Communications module is designed to allow SLC processors to interface easily with Modbus protocol-compatible devices and hosts.
  • The MVI46-MCM module acts as an input/output module between the Modbus network and the Rockwell Automation backplane. The data transfer from the SLC processor is asynchronous from the actions on the Modbus network. A 5000-word register space in the module exchanges data between the processor and the Modbus network.
  • Many host SCADA packages support the Modbus protocol, while devices commonly supporting the protocol include several PLCs, as well as many other third party devices in the marketplace. (For a partial list of devices that speak Modbus, please visit the ProSoft Tested section of the ProSoft Technology web site).
Specifications
  • Single Slot - 1746 backplane compatible (Local or extended I/O rack only. Remote rack not supported)
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module using M0/M1 files
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file included
  • Configuration data obtained from configuration text file downloaded to module. Sample configuration file included
