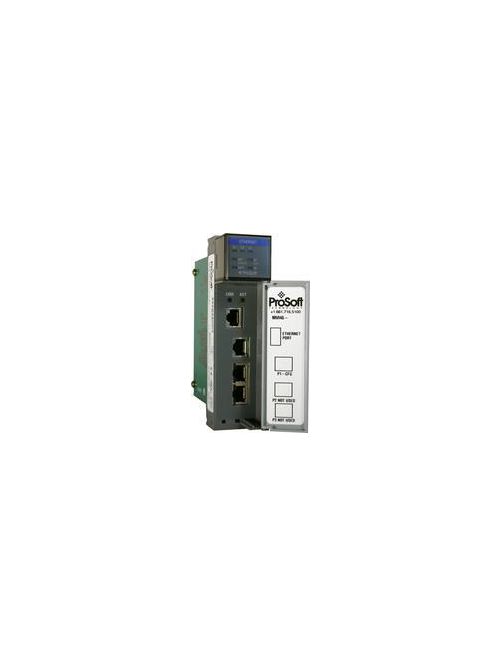

PROSOFT MVI46-MNET MODBUS TCP/IP COMMUNICATION MODULE

Manufacturer: Prosoft Technology, Inc. | Catalog # MVI46-MNET | North Coast Part # 322892
$4,030.51/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
The MVI46 Modbus TCP/IP Network Interface Module is designed to allow SLC processors to interface easily with other Modbus TCP/IP protocol-compatible devices using client and server functionality. Compatible devices include not only Modicon processors (which support the Modbus TCP/IP protocol) but also a wide assortment of other clients and server devices.

Manufacturer Information

Brand
Prosoft Technology

General Product Info

12-Digit UPC
992231000310
Client Specifications
  • Actively issues connected, explicit messages to other nodes on the network
  • Supports 100 user-defined commands from a single client
  • Allows command control from ladder logic
  • Pass-through services
  • Permits remote programming of the SLC processor on the Ethernet network via a pass-through
  • TCP/IP service and a serial communication port (pass-through port) on the module
  • A PC with RSLogix 500, RSLinx, and a TCP/IP service on the network can remotely program the SLC
  • The third port on the module can emulate the Channel 0 port on the SLC. This allows a DF1 master device attached to the emulated (Channel 0) port to monitor and control data in the SLC.
EtherNet/IP (Explicit Messaging) Compatible Devices
  • Rockwell Automation equipment that supports EPIC:
  • PLC5/E rev C/N, D/E, E/D
  • SLC5/05 series A, OS503 frn4
  • 1785-ENET Series A, rev D
  • Interchange V6.2
  • MicroLogix 1100/1400/ANY via 1761-NET-ENI
  • CompactLogix 1768-L43/L45 via 1768-ENBT
  • CompactLogix 1769-L32E/L35E/ANY
  • CompactLogix L23E
  • RSLinx Gateway V1.7+
  • ControlLogix 1756-ENET/ENBT/EN2T/EN2TR
Applications
  • With the growing trend of Ethernet technology in the industrial marketplace, this product has a wide variety of application uses.
  • Food processing
  • Petrochemical
  • Pulp and paper
  • Automobile manufacturing
  • Water and Wastewater
  • Oil and Gas
  • Power and Electric
  • Support for the storage and transfer of up to 5000 registers to/from the SLC processor using M0/M1 data file transfer
  • User-definable module memory usage
  • 10/100 Base-T Ethernet compatible interface
  • Configurable parameters for the client and server applications and floating point support
Server Specifications
  • Supports EtherNet/IP explicit, connected, and unconnected class messaging
  • Twenty independent server connections permit remote clients to interact with all data contained in the module
  • Data can be derived from other clients on the network, through the client on the module, or from the SLC processor
Features and Benefits
  • The MVI46-MNET module is a single slot solution that provides a powerful connection between Rockwell Automation's SLC processor and Modbus TCP/IP network applications.
  • The TCP/IP Modbus network applications include those networks hosted by Modicon Quantum processors, networks controlled by operator interface software applications, and the growing number of manufactured devices that support this protocol. The module acts as an input/output module between the Modbus TCP/IP network and the SLC backplane. The data transfer from the processor is asynchronous from the actions on the Modbus TCP/IP network. A 5000-word register space in the module exchanges data between the processor and the Modbus TCP/IP network.
Specifications
  • Single Slot - 1746 backplane compatible (Local or extended I/O rack only. Remote rack not supported)
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module using M0/M1 files
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file included
  • Configuration data obtained from configuration text file downloaded to module. Sample configuration file included
Functional Specifications
  • Rockwell Automation 5/02/03/04 processors with DH-485 or DH+ network connections to co-exist with EtherNet/IP network
  • SLC 5/05 in-chassis EtherNet/IP bridge to optimize data throughput while communicating with MMI or SCADA and other control platforms without losing valuable process control bandwidth
  • Support of up to 4000 SLC registers user data files
  • User-definable module memory usage
  • 10/100 MB Ethernet compatible interface
  • Functions as a server or a client
  • Configurable parameters for the client include:
  • A minimum response delay of 0 to 65535 mSec
  • A response timeout of 1 to 65535 mSec
  • A retry count of 0 to 20
  • Status data available in ladder logic
  • Support for SLC processor programming over Ethernet using a TCP/IP service and a serial port on the module connected to channel 0 of the processor. The module's third port emulates Channel 0 of the processor to pass through messages from the port to the processor
General Specifications
  • Single Slot - 1746 backplane compatible (Local or extended I/O rack only. Remote rack not supported)
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module using M0/M1 files
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file included
  • Configuration data obtained from configuration text file downloaded to module. Sample configuration file included
