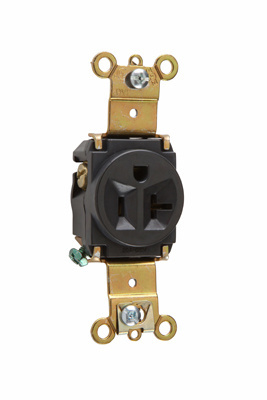

Product image for Pass & Seymour 5361-BK Single Receptacle, HD Spec Grade, 20A 125V, Back & Side Wired - Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 5361-BK Single Receptacle, HD Spec Grade, 20A 125V, Back & Side Wired - Black

Manufacturer: Legrand / Pass & Seymour | Catalog # 5361BK | North Coast Part # 323344
$39.96 /ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn opens monday 5:00am pt
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Heavy-Duty Spec Grade Single Receptacle, Back & Side Wire, 20amp 125volt, Red

Technical Information

Amperage
20 Amp
Applications
Commercial, Heavy Duty
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Commercial Specification
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Wall, Flush, Screw
NEMA
5-20R
Number of Gangs
1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
1.32 L x 1.093 W x 3.68 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy Duty, Surge Protection
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007536126
Color
Black
Finish
Gloss
GTiN
00785007536126
Product UPC
78500753612
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Certifications
  • cUL Listed
  • Federal Spec Listed
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
