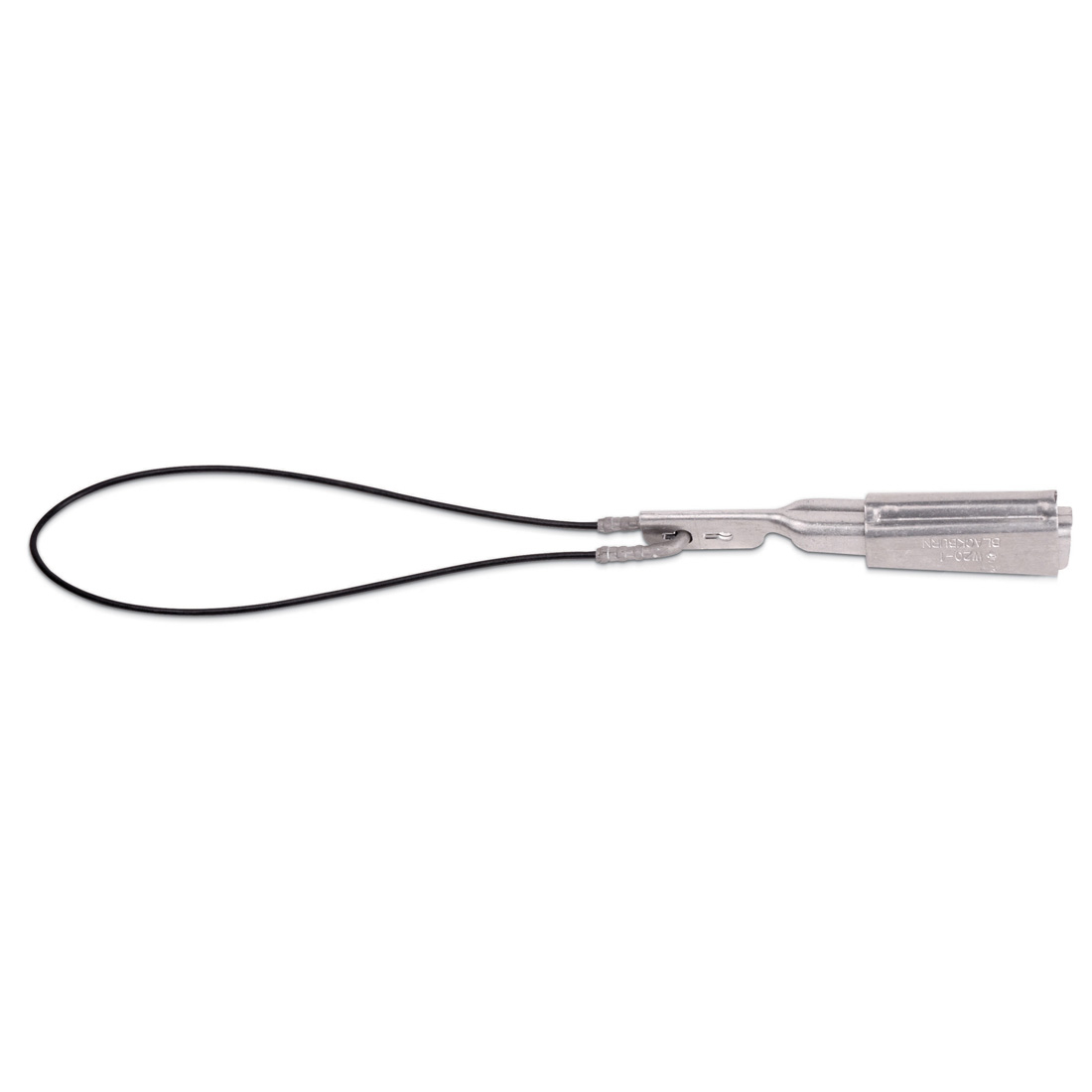

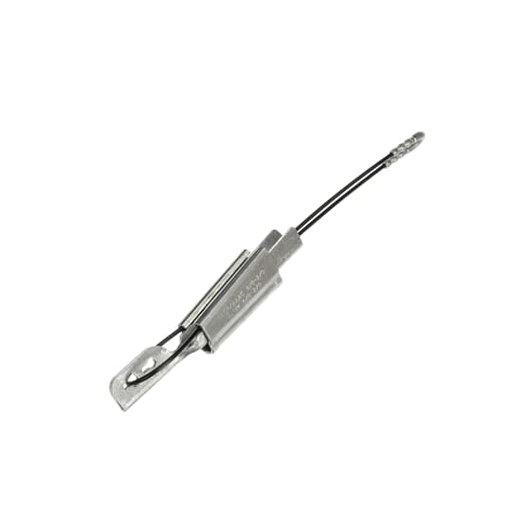

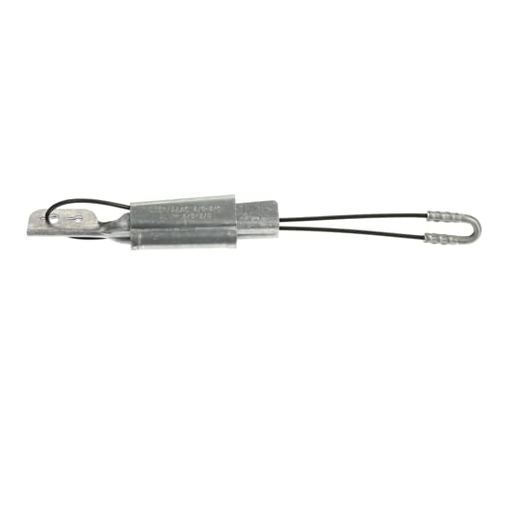

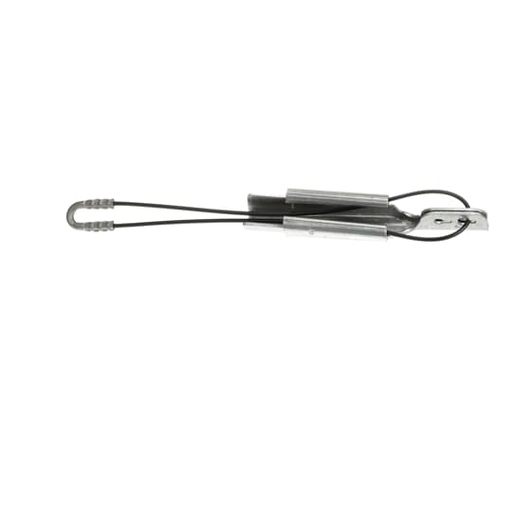

Blackburn W40-1FC 4/0 Aluminum Wedge Clamp

Manufacturer: Thomas & Betts / Blackburn | Catalog # W40-1FC | North Coast Part # 32824
$36.48/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Aluminum Service Entrance Wedge Clamp and Slider for Wire Range: 4/0-2/0 ASCR, 4/0-2/0 AAAC, 4/0 Str.-2/0 Str. Flexible Bail, Color Code Red

Technical Information

Applications
For Dead-End Self-supporting Drop Wire
Connection Type
Tension
Insulated?
No
Material
Aluminum
Mounting Type
Yes
Number of Conductors
1
Size
18-1/2 in
TC Connection
Tension
Type
Aluminum Service Wedge Clamp
Voltage
35 kV

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786332052
Finish
Bare
GTiN
00783786332052
Product UPC
78378633205
Used With
Round/Flat Conductor

Dimensions

Length
18-1/2 Inch
Features
  • Versatile use. Flexible and rigid bails grip ACSR, AAC and AAAC conductors.
  • Drop wire may be cut to exact length to adjust drop wire sag. This also saves the conductor.
  • Can be attached to bare neutral at any point in the span.
Notes
  • Catalog numbers with FC suffix have a flexible bail.
  • W40 series clamps rated 850 lb. Ultimate tension for 1/0 ASCR, AL or AAAC.
