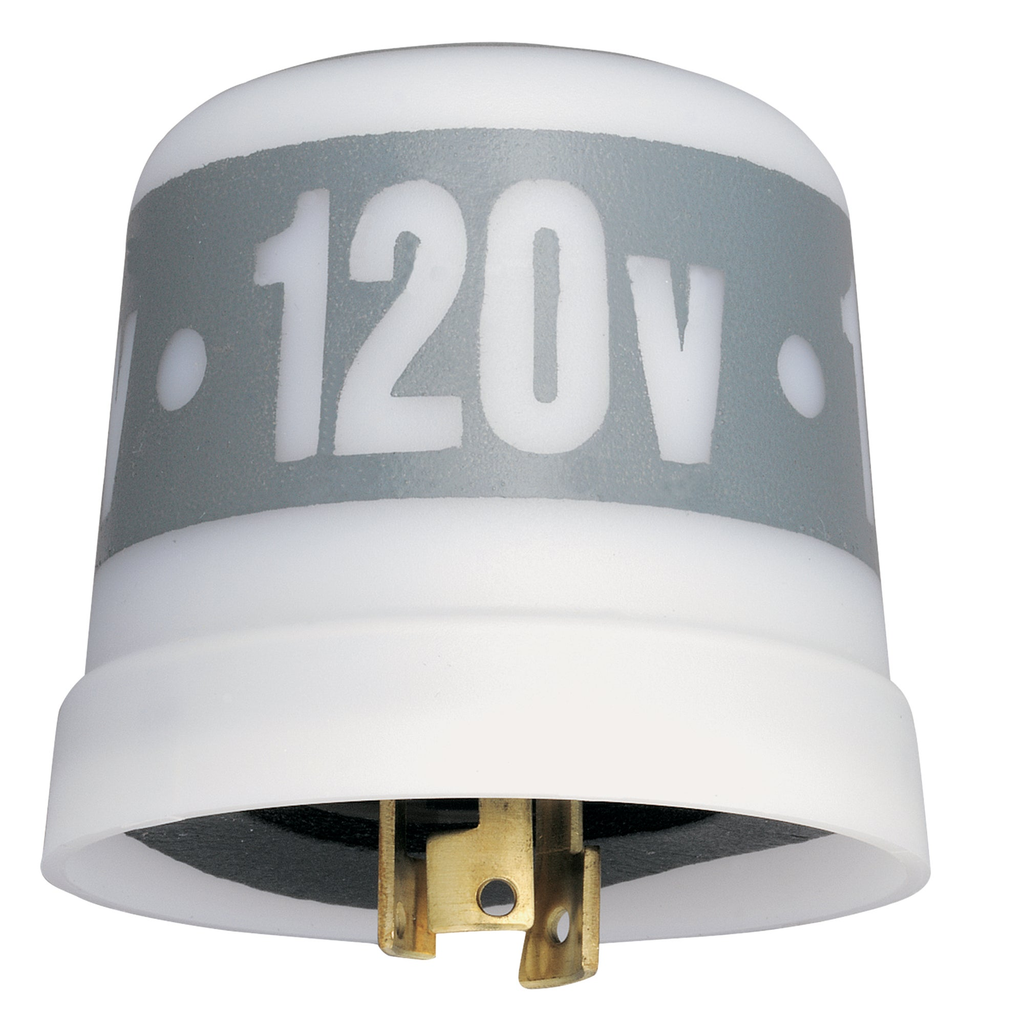

Product image for Intermatic LC4521LA 120 VAC 50/60 Hz 1800 W Twist-Lock Thermal Photocontrol with Surge Arrestor
Image thumbnail 0
Image thumbnail 1
Email

Intermatic LC4521LA 120 VAC 50/60 Hz 1800 W Twist-Lock Thermal Photocontrol with Surge Arrestor

Manufacturer: Intermatic | Catalog # LC4521LA | North Coast Part # 329290
$40.95/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacle commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.

Technical Information

Amperage
8.3 Amp Ballast, 15 Amp Tungsten, 15000 mA Maximum Output
Applications
For Dusk to Dawn Lighting Control
Connection Type
Lock Type
Frequency
50/60 Hz
Material
Plastic
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Twistlock Mount
Operating Temperature
104 degrees F
Power Consumption
1 W
Power Rating
1800 W Tungsten, 1 W Power Consumption
Sensor Type
Thermal (Cadmium Sulfide)
Size
3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM
Standard
CSA,California Title 24 Compliant,Title CA 20 Listed,UL Recognized
TC Connection
Lock Type
Temperature Rating
-29 to 40 degrees C
Type
Automatic Switching, Cylinder Plain, Light/Dark
Voltage
120 VAC
Wire Length
0 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275002661
Color
Translucent
GTiN
00078275002661
Product UPC
07827500266
Weight
0.251 lb

Dimensions

Height
2-3/4 Inch
Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Integral high impact thermoplastic housing
  • Locking type plug for quick installation and changeover
  • Delay feature prevents unwanted OFF switching
  • Complies with ANSI C136.10 standard
  • Tested to 3,650 ON/OFF cycles
  • NA
