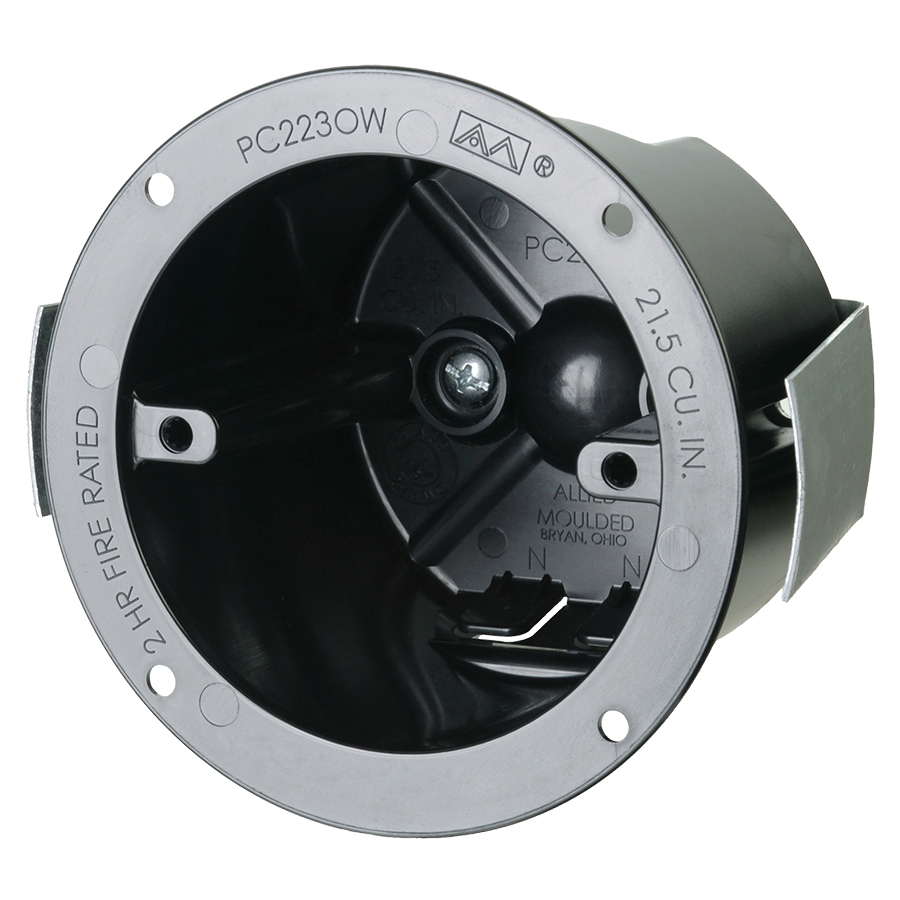

Allied Moulded Products PC223OW 2-13/16 x 3-1/2 Inch 22 In³ Polycarbonate Round Fixture Outlet Box

Manufacturer: Allied Molded Products | Catalog # PC223OW | North Coast Part # 339978

$563.11/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
72 available

For Delivery

Order by Wednesday 4:00pm PT for delivery Thursday
Not available for delivery*
Check your local branch
21.5 Cu. In. 3.5" dia. round fixture support (15 lbs.) box for use with nonmetallic sheathed cable - Machine tapped fixture holes, round exterior for easy cut-in - Old work residential construction 2 HR fire resistive Ceilings - Polycarbonate - Thermoplastic box with galvanized snap bracket - Size: Depth=2 13/16", Dia=3 1/2" - Mount with Snap bracket/box flange wall compression

Technical Information

Applications
Old work residential construction 2HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weiging six pounds or less.
Cable Entry
Four Molded-in Speed Klamps
Insulation Type
Non-Conductive,Non-Metallic
Material
Polycarbonate
Mounting Type
Snap Bracket/box Flange Wall Compression
Size
Depth=2 13/16", Dia=3 1/2"
Standard
UL 514 C
Type
3.5" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable

Manufacturer Information

Family Brand Name
Allied Moulded
Sub Brand
FLEXBOX

General Product Info

Color
Black
Construction
Injection Molded
GTiN
00085339980285
Product UPC
08533998028

Dimensions

Depth
2-13/16 Inch
Width
3 in
  • Machine tapped fixture holes, round exterior for easy cut-in
  • Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.
  • PC223OWG
  • ANSI / UL 514C: File No. E30594
  • Round Ceiling Box
Fire Test of Building Construction Materials
  • Note: Products must also be certified to: ANSI / UL 514C
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
  • Distance between boxes in adjacent cavities may be reduced to 5 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
