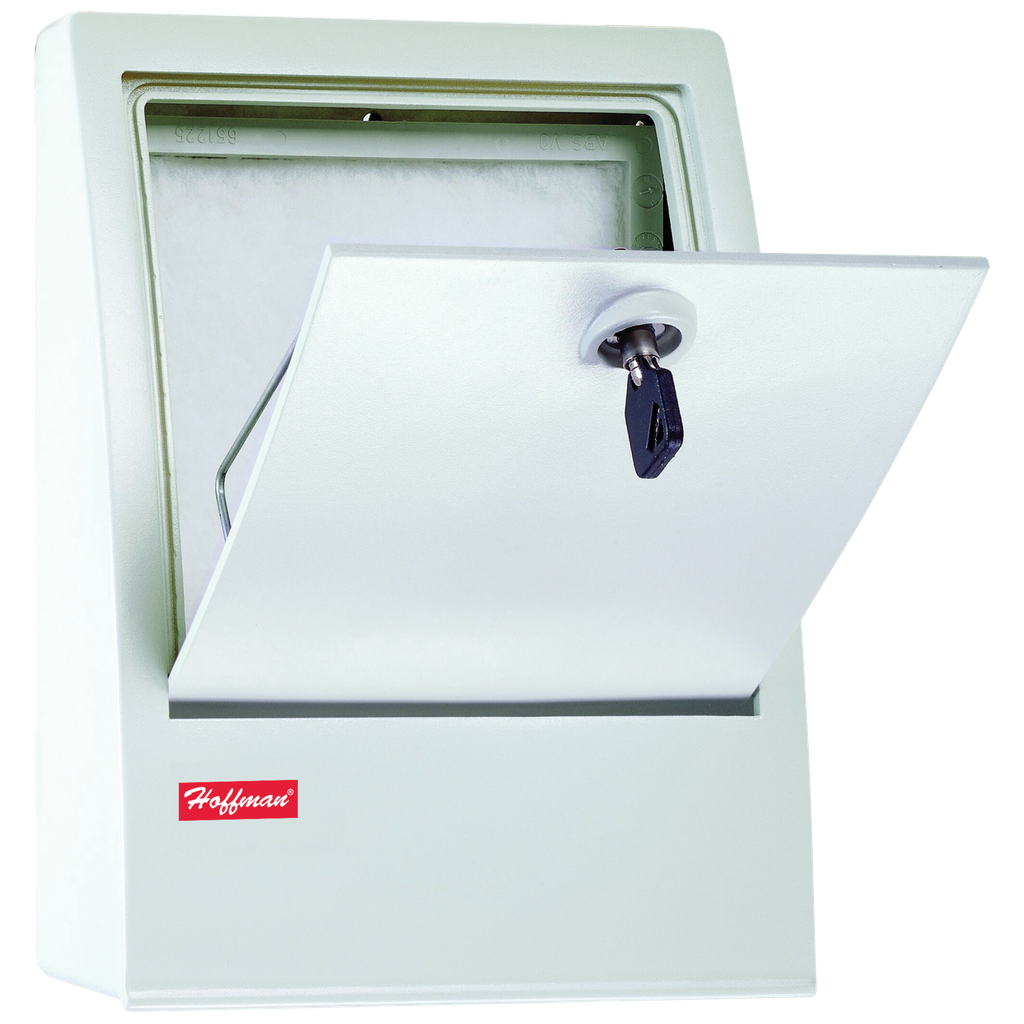

Hoffman AOFF118 Outdoor filter fan, 11.8CFM 120VAC

Manufacturer: nVent Hoffman | Catalog # AOFF118 | North Coast Part # 349821
$1,190.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
This Outdoor Filter Fan and Exhaust Package is made of high-impact plastic that is highly weatherproof and resistant to UV light. The fan has a ball bearing axial with a service life minimum of 50,000 hours.

Technical Information

Amperage
0.3 Amp
Applications
Controls and Drives; Power Distribution
Material
Plastic
Max Current
0.3 A
Standard
CE,CURus Type 12,File No. E234324,IEC/EN60529,IP55,NEMA Type 3R
Type
Open-Loop Cooling
Voltage
120 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510164522
Color
Gray
Finish
Matte
GTiN
00783510164522
Product UPC
78351016452
Weight
2.9 lb

Dimensions

Depth
5 Inch
Height
6.1 Inch
Length
8.8 Inch
Width
6.5 in
Features
  • The fan has a ball bearing axial with a service life minimum of 50,000 hours at 77 F (25 C) and 65 percent relative humidity.
  • Airflow 11.8 CFM (20 cubic meters/hour) free blowing
  • Aluminum fan body, plastic impeller
  • Removable F5 filter
  • Lockable door in hood
  • Two-sided tape provided
  • Filter hood permanently fixed to enclosure from inside
  • 2 lead wires, 3.94-inch (100-mm) long, with pressure clamps, 14 gauge max. (2.5 mm)
  • Synthetic filter material, temperature resistant to 212 F (100 C), self-extinguishing class F1, moisture resistant to 100 percent RH
  • Filter mat: Fine grade F5 to DIN EN779 filtering degree: 98 percent of particles larger than 10 m (10 microns)
