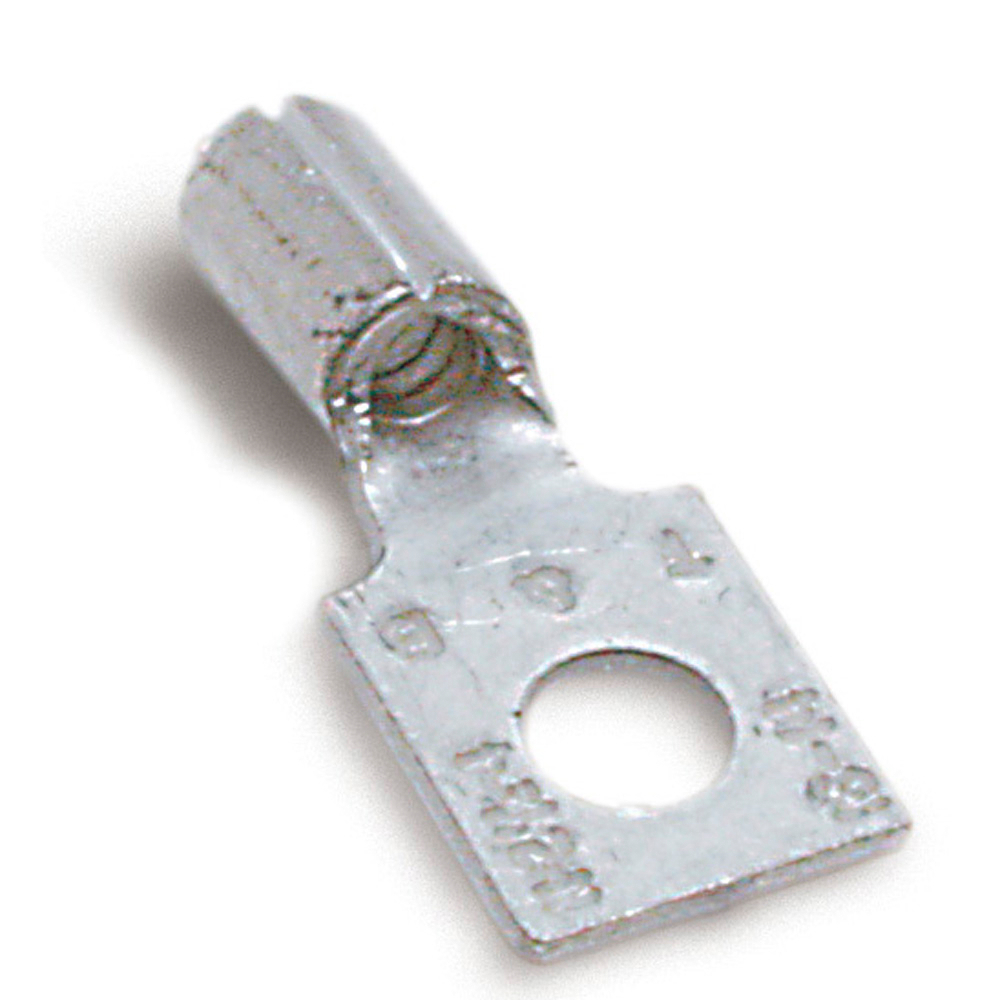

Thomas & Betts A484 Non-Insulated Rectangular Ring Terminal - 22-18, #6bolt (1000/Pkg)

Manufacturer: Thomas & Betts | Catalog # A484 | North Coast Part # 352929
$162.95/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Non-Insualted Rectangular Ring Terminal, Length .87 Inches, Width .237 Inches, Bolt Hole #6, Wire Range #22-#18 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed, Overlapping Seam
Conductor Size
22-18 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
150 degrees C
Type
Rectangular
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210808697
Color
Metallic
Finish
Tin Plated
GTiN
00786210808697
Product UPC
78621080869

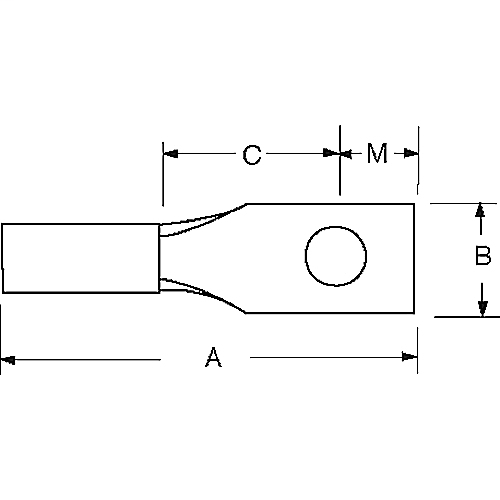

Dimensions

Length
0.87 Inch
Width
0.237 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • 22-18 ga. = 1-2 Navy
  • A, B, C484 for use with BU-Ships terminal board types 10TB and 11TB.
