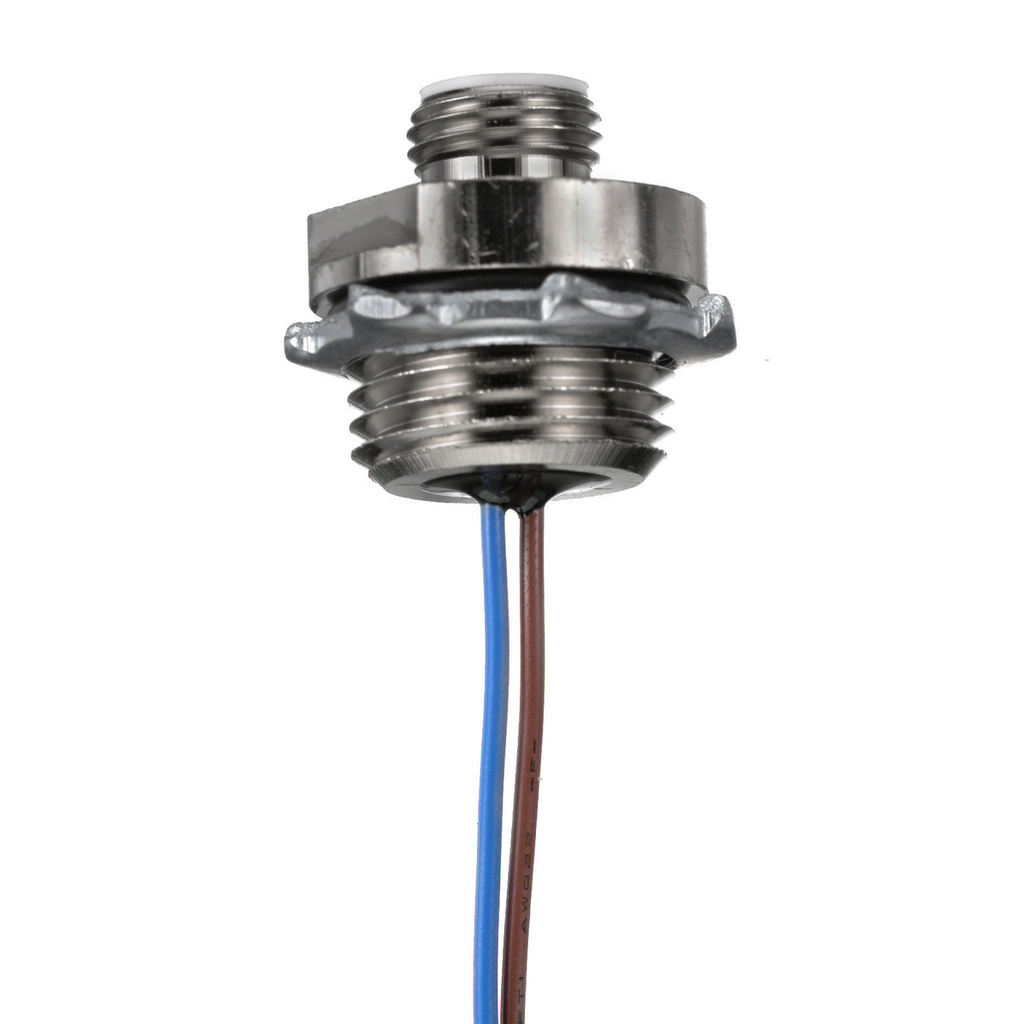

Product image for HWDK MBMS24350 MCQK, ML ST RCP, MET
Image thumbnail 0
Image thumbnail 1
Email

HWDK MBMS24350 MCQK, ML ST RCP, MET

Manufacturer: Hubbell / Kellems | Catalog # MBMS24350 | North Coast Part # 353217
$51.64/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Micro-Quick Control Connectors, Male Receptacle, 4P, Dual Key, 1/2"NPT

Technical Information

Amperage
6 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Size
18 AWG
Conductor Type
Copper
Contact Material
Beryllium Copper,Brass
Current
6 Amp
Insulation Material
Nylon 6/6
Material
Composite
Number of Conductors
4
Number of Poles
4 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Type
Male Receptacle
Voltage
300 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Micro-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585227542
Color
Metallic
Construction
Metallic Shell
GTiN
00783585227542
Product UPC
78358522754

Dimensions

Height
8.8 Inch
Length
6 Inch
Width
0.600 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Features
  • Black overmold and cable
  • Dual Key
  • Beryllium copper socket contacts
  • Plating resists corrosion in high abuse environments
  • Nickel plated brass coupling nuts and receptacle shells
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E192071
Performance
  • Electrical - Amperage - #22 AWG - 2&3P=5A, 4&5P=4A, 6P=3A
  • Electrical - Contact Resistance - Less than or Equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or Equal to 10 Megaohm
  • Electrical - Voltage Rating - 300V DC/300V AC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - #22 AWG PVC cable: -20°C to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
