PROSOFT MVI56-PDPS PROFIBUS DP SLAVE COMMUNICATION MODULE

Manufacturer: Prosoft Technology, Inc. | Catalog # MVI56-PDPS | North Coast Part # 354415
$4,487.54/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy

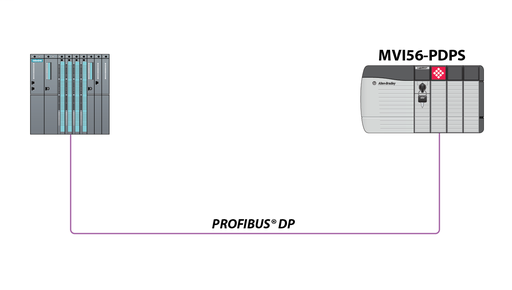

The MVI56 PROFIBUS DP Slave Communication Module allows ControlLogix I/O compatible processors to interface easily with a PROFIBUS DP Master device.

Manufacturer Information

Brand
Prosoft Technology

General Product Info

12-Digit UPC
992231000754
Protocol
Profibus DP

Dimensions

Platform
ControlLogix
Specifications
  • Single Slot - 1756 backplane compatible
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file (add-on instruction) included.
  • Local or remote rack
  • Configurable I/O backplane sizes allow optimal performance for remote rack applications
  • CIPconnect™ enabled. Module supports communications with ProSoft Configuration Builder and FDT comDTM via Ethernet routing using Rockwell Automation Ethernet interface.
Applications
  • With the growing usage of the PROFIBUS DP protocol in the industrial marketplace, this product has a wide variety of application uses. Industries that use this technology include:
  • Power and distribution applications
  • Petrochemical
  • Water and Gas Applications
  • SCADA and DCS applications
Features and Benefits
  • The PROFIBUS DP Slave protocol driver supports the PROFIBUS V0 Slave implementation, providing powerful data transfer capability between the module and a ControlLogix processor. User configurable data mapping and DP port operation make the interface an easy to use and powerful data transfer tool.
  • The MVI56 module Configuration/Debug Serial port connects a PC to the module for configuration, status, monitoring, and troubleshooting (serial cable is included with product shipment). After editing on a PC, a configuration file is downloaded and stored on the MVI56 module.
  • The PROFIBUS DP Slave gives access to the unit's input and output images with up to 122 words of Input and Output data. Total input and output may not exceed 200 words. These Input and Output data blocks are mapped by the user within the module's data memory allowing maximum flexibility and data transfer with other protocols.
