Hubbell HBL5866VY 15 Amp 125 Volt 2-Pole 2-Wire NEMA 1-15P Yellow Nylon Straight Blade Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL5866VY | North Coast Part # 35442
$24.71/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non- Grounding, 15A 125V, 1-15P , Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
16-10 AWG
Cord Type
Portable
Current
15 Amp
Grounding
Yes
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
1-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Non-Grounding
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
2
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Valise®

General Product Info

12-Digit UPC
783585013077
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585013077
Product Series
Valise
Product UPC
78358501307
Weight
0.1 lb

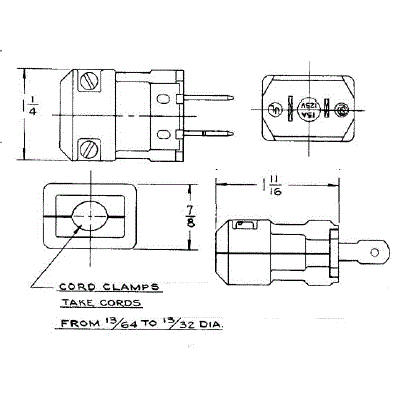

Dimensions

Height
0.88 Inch
Length
1.68 Inch
Width
1.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Hinged one piece body design for easy assembly
  • Two captive multiple drive assembly screws
  • Powerful cord grips prevent conductor slippage and strain
  • Polarized blades
  • Polarized
