ABB RB2207-200 EXP INS VINYL LKG FO

Manufacturer: Thomas & Betts | Catalog # RB2207-200 | North Coast Part # 354827
$96.46/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

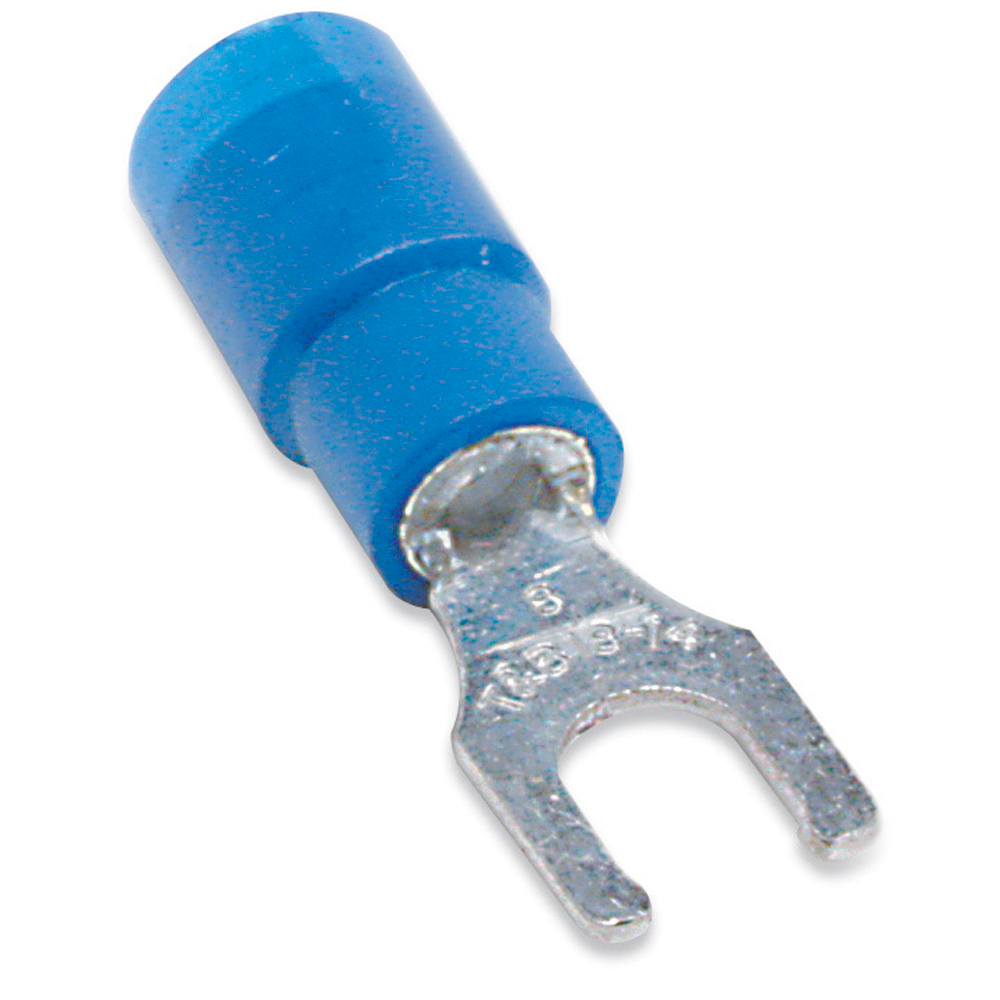

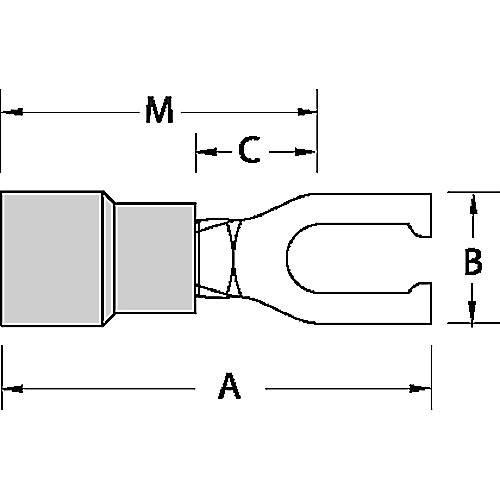

Expanded Vinyl Insulated Locking Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve, Expanded, Locking
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210819426
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363933915
Product UPC
78621081942

Dimensions

Height
3 Inch
Thickness
.03 in
Width
4-1/2 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
